1131/31 M12-2202

Active

APM HEXSEAL

TOGGLE FULL BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE FULL BOOT BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1131/31 M12-2202	1131 Series

Actuator Diameter [diameter]	6.5 mm	2.95 - 6.5 mm
Actuator Diameter [diameter]	0.256 in	0.116 - 0.256 in
Color	Black	Black, Gray
Features	-	Inverted Bellow
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension	-	14.3 mm
Size / Dimension [z]	0.844 in	0.844 - 1.093 in
Size / Dimension [z]	21.4 mm	0.562 - 27.76 mm
Thread Size	M12x1	M12x1, M12x0.75, M6x0.75, 15/32-32 NS-2B, 1/2-32 NS-2B
Type	Full Boot, Toggle	Full Boot, Toggle

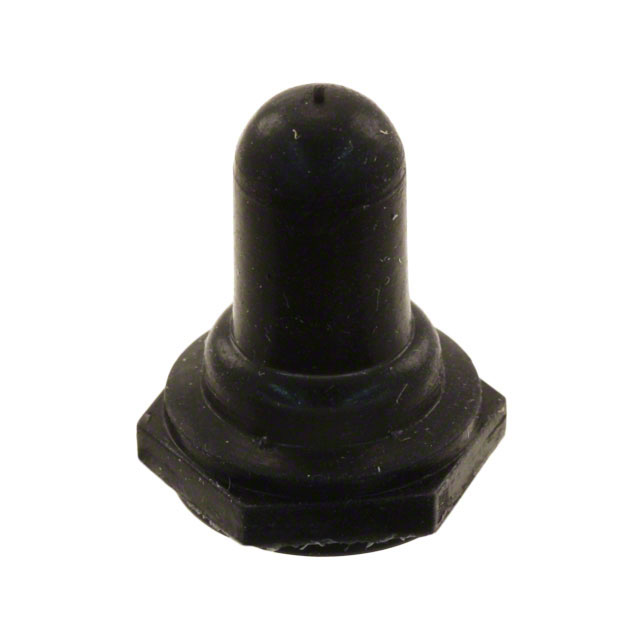

TOGGLE FULL BOOT BLACK

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size / Dimension [z]	Size / Dimension [z]	Mounting Feature	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products	Color	Type	Thread Size	Material	Size / Dimension [z]	Features
APM HEXSEAL 1131/26 17 M12-.10	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/26 17 M12-.75	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x0.75	Silicone Rubber
APM HEXSEAL 1131/25 17	2.95 mm	0.116 in	0.562 in		Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M6x0.75	Silicone Rubber	14.3 mm
APM HEXSEAL 1131/31 17	6.5 mm	0.256 in	21.4 mm	0.844 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	15/32-32 NS-2B	Silicone Rubber
APM HEXSEAL 1131/40 S 17	5.95 mm	0.234 in	21.8 mm	0.859 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/31 M12-2202	6.5 mm	0.256 in	21.4 mm	0.844 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/26 2501	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Gray	Full Boot, Toggle	15/32-32 NS-2B	Silicone Rubber
APM HEXSEAL 1131/60 2201			23 mm	0.906 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Gray	Full Boot, Toggle	1/2-32 NS-2B	Silicone Rubber		Inverted Bellow
