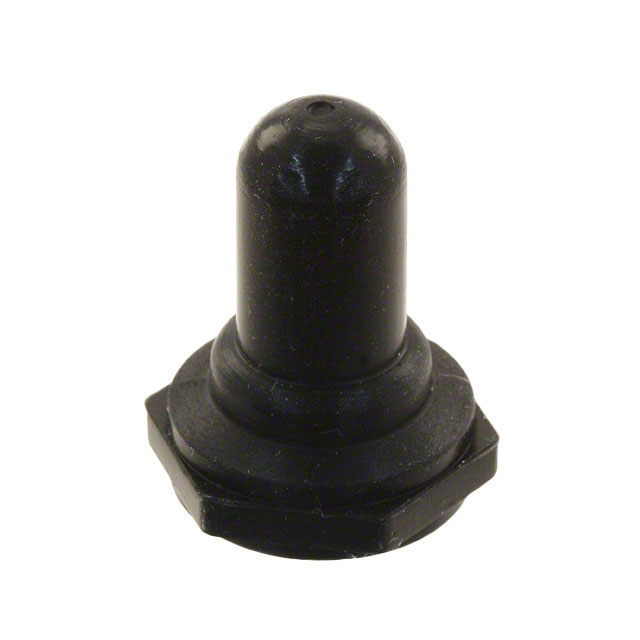

1131/40 S 17

Active

APM HEXSEAL

TOGGLE FULL BOOT BLACK

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE FULL BOOT BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 2.60

General part information

TOGGLE FULL BOOT BLACK

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1131/40 S 17	1131 Series

Actuator Diameter [diameter]	0.234 in	0.116 - 0.256 in
Actuator Diameter [diameter]	5.95 mm	2.95 - 6.5 mm
Color	Black	Black, Gray
Features	-	Inverted Bellow
For Use With/Related Products	Multiple Series	Multiple Series
Ingress Protection	IP66/IP68	IP66/IP68
Material	Silicone Rubber	Silicone Rubber
Mounting Feature	Front of Panel	Front of Panel
Operating Temperature [Max]	204 °C	204 °C
Operating Temperature [Min]	-70 °C	-70 °C
Size / Dimension	-	14.3 mm
Size / Dimension [z]	21.8 mm	0.562 - 27.76 mm
Size / Dimension [z]	0.859 in	0.844 - 1.093 in
Thread Size	M12x1	M12x1, M12x0.75, M6x0.75, 15/32-32 NS-2B, 1/2-32 NS-2B
Type	Full Boot, Toggle	Full Boot, Toggle

TOGGLE FULL BOOT BLACK

Part	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size / Dimension [z]	Size / Dimension [z]	Mounting Feature	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products	Color	Type	Thread Size	Material	Size / Dimension [z]	Features
APM HEXSEAL 1131/26 17 M12-.10	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/26 17 M12-.75	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x0.75	Silicone Rubber
APM HEXSEAL 1131/25 17	2.95 mm	0.116 in	0.562 in		Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M6x0.75	Silicone Rubber	14.3 mm
APM HEXSEAL 1131/31 17	6.5 mm	0.256 in	21.4 mm	0.844 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	15/32-32 NS-2B	Silicone Rubber
APM HEXSEAL 1131/40 S 17	5.95 mm	0.234 in	21.8 mm	0.859 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/31 M12-2202	6.5 mm	0.256 in	21.4 mm	0.844 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Black	Full Boot, Toggle	M12x1	Silicone Rubber
APM HEXSEAL 1131/26 2501	5.55 mm	0.219 in	27.76 mm	1.093 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Gray	Full Boot, Toggle	15/32-32 NS-2B	Silicone Rubber
APM HEXSEAL 1131/60 2201			23 mm	0.906 in	Front of Panel	IP66/IP68	204 °C	-70 °C	Multiple Series	Gray	Full Boot, Toggle	1/2-32 NS-2B	Silicone Rubber		Inverted Bellow
