SWITCH ACCESSORIES / CAPS ROHS
Search across all available documentation for this part.
SWITCH ACCESSORIES / CAPS ROHS
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
SWITCH ACCESSORIES / CAPS ROHS
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1131/25 17 | 1131 Series |
|---|---|---|
| Actuator Diameter [diameter] | 2.95 mm | 2.95 - 6.5 mm |
| Actuator Diameter [diameter] | 0.116 in | 0.116 - 0.256 in |
| Color | Black | Black, Gray |
| Features | - | Inverted Bellow |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -70 °C | -70 °C |
| Size / Dimension | - | 0.844 - 1.093 in |
| Size / Dimension [z] | 0.562 in | 0.562 - 27.76 mm |
| Size / Dimension [z] | 14.3 mm | 14.3 mm |
| Thread Size | M6x0.75 | M12x1, M12x0.75, M6x0.75, 15/32-32 NS-2B, 1/2-32 NS-2B |
| Type | Full Boot, Toggle | Full Boot, Toggle |
TOGGLE FULL BOOT BLACK
| Part | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Size / Dimension [z] | Size / Dimension [z] | Mounting Feature | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | For Use With/Related Products | Color | Type | Thread Size | Material | Size / Dimension [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL 1131/26 17 M12-.10 | 5.55 mm | 0.219 in | 27.76 mm | 1.093 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Black | Full Boot, Toggle | M12x1 | Silicone Rubber | ||
APM HEXSEAL 1131/26 17 M12-.75 | 5.55 mm | 0.219 in | 27.76 mm | 1.093 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Black | Full Boot, Toggle | M12x0.75 | Silicone Rubber | ||

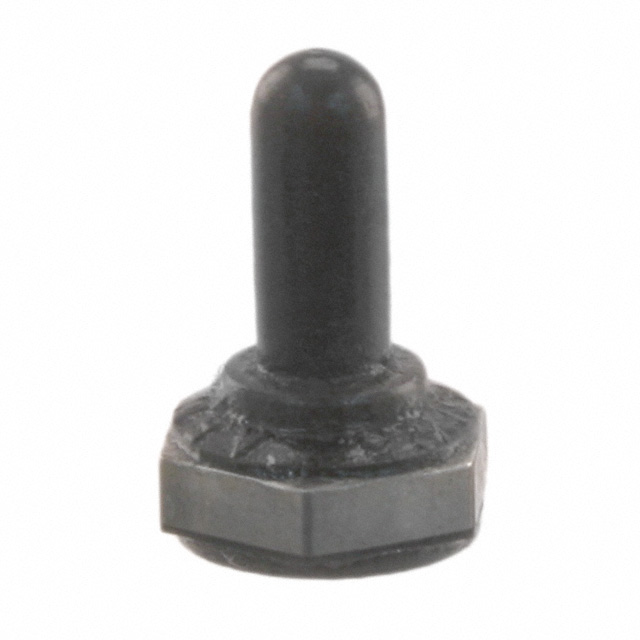

APM HEXSEAL 1131/25 17 | 2.95 mm | 0.116 in | 0.562 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Black | Full Boot, Toggle | M6x0.75 | Silicone Rubber | 14.3 mm | ||
APM HEXSEAL 1131/31 17 | 6.5 mm | 0.256 in | 21.4 mm | 0.844 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Black | Full Boot, Toggle | 15/32-32 NS-2B | Silicone Rubber | ||
APM HEXSEAL 1131/40 S 17 | 5.95 mm | 0.234 in | 21.8 mm | 0.859 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Black | Full Boot, Toggle | M12x1 | Silicone Rubber | ||
APM HEXSEAL 1131/31 M12-2202 | 6.5 mm | 0.256 in | 21.4 mm | 0.844 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Black | Full Boot, Toggle | M12x1 | Silicone Rubber | ||
APM HEXSEAL 1131/26 2501 | 5.55 mm | 0.219 in | 27.76 mm | 1.093 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Gray | Full Boot, Toggle | 15/32-32 NS-2B | Silicone Rubber | ||
APM HEXSEAL 1131/60 2201 | 23 mm | 0.906 in | Front of Panel | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Gray | Full Boot, Toggle | 1/2-32 NS-2B | Silicone Rubber | Inverted Bellow |
