IO-XLR3-M-BK-JL

Active

IO Audio Technologies

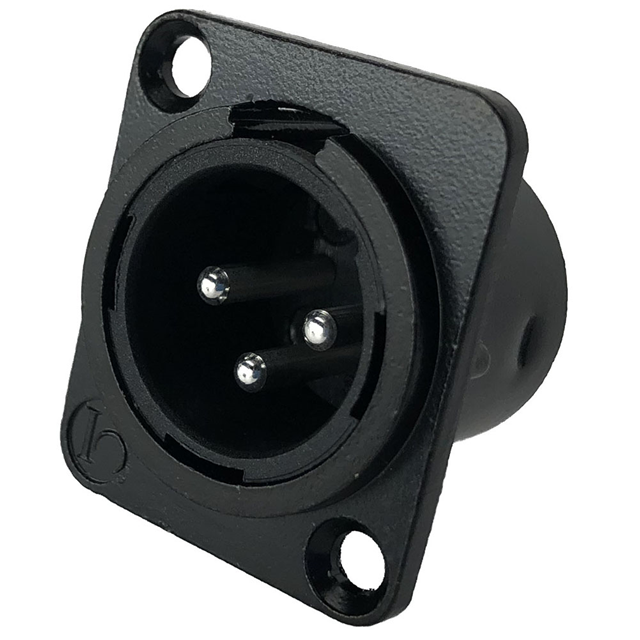

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC BODY, JL SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IO-XLR3-M-BK-JL

Active

IO Audio Technologies

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC BODY, JL SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IO-XLR3-M-BK-JL	IO-XLR3 Series

1st Connector Gender	-	Male Pins
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	3
1st Connector Number of Positions Loaded	-	All
1st Connector Shell Size - Insert	-	XLR
1st Connector Type	-	Receptacle
2nd Connector Gender	-	Female Sockets
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Connector Number of Positions	-	3
2nd Connector Number of Positions Loaded	-	All
2nd Connector Shell Size - Insert	-	XLR
2nd Connector Type	-	Plug
Applications	Audio, Video, Lighting Control, Medical	Audio, Video, Lighting Control, Medical, Audio, Lighting Control
Assembly Configuration	-	Standard
Backshell Material, Plating	-	Zinc Die Cast
Cable Material	-	Polyvinyl Chloride (PVC)
Cable Type	-	Round
Color	Black	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets, Female Sockets, Plug
Contact Finish - Mating	Silver	Silver, Gold
Contact Finish Thickness - Mating	-	1.97 Áin
Contact Finish Thickness - Mating	-	0.05 Ám
Contact Material	Phosphor Bronze	Phosphor Bronze, Brass
Current Rating (Amps)	15 A	6 - 15 A
Fastening Type	Latch Lock	Latch Lock
Features	Ground	Ground, Strain Relief, Backshell, Board Guide
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA), Plastic
Length	-	6 - 50 ft
Length	-	1.83 - 15.24 m
Length	-	3 - 100 ft
Length	-	30.5 - 914.4 mm
Material Flammability Rating	-	UL94 HB
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	70 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal, Plastic
Shell Finish	Black	Nickel, Black
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded, Double Shielded, Unshielded
Termination	-	Solder
Voltage Rating	125 VAC	50 - 125 VAC

IO-XLR3 Series

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC BODY, JLX SERIES

Part	Shell Finish	Features	Applications	Connector Type	Color	Contact Finish - Mating	Mounting Feature	Shell Material	Fastening Type	Voltage Rating	Primary Material	Contact Material	Shielding	Insert Material	Current Rating (Amps)	Shell Size - Insert	Orientation	Assembly Configuration	1st Connector Gender	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Type	Cable Material	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector Gender	2nd Connector Shell Size - Insert	2nd Connector Type	Length	Length	2nd Connector Number of Positions Loaded	1st Connector Number of Positions Loaded	2nd Connector Number of Positions	Length [x]	Length [x]
IO Audio Technologies IO-XLR3-M-JLX	Nickel	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Silver	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-25-E					Black								Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	25 ft	7.62 m	All	All
IO Audio Technologies IO-XLR3-F-BK-JL	Black	Ground	Audio, Lighting Control, Medical, Video	Receptacle, Female Sockets	Black	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-M-JL	Nickel	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Silver	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-M-BK-JL	Black	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Black	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-6-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	6 ft	1.83 m	All	All	3
IO Audio Technologies IO-XLR3-6-E					Black								Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	6 ft	1.83 m	All	All	3
IO Audio Technologies IO-XLR3-3-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug			All	All	3	3 ft	914.4 mm
IO Audio Technologies IO-XLR3-50-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	50 ft	15.24 m	All	All
IO Audio Technologies IO-XLR3-10-X					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	10 ft	3.05 m	All	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.30
		10	$ 4.82
		25	$ 4.56
		50	$ 4.45
		100	$ 4.24
		250	$ 3.71
		500	$ 3.61
		1000	$ 3.08
		2500	$ 2.86
Newark	Each	1	$ 3.87
		10	$ 3.81
		25	$ 3.70
		50	$ 3.47
		100	$ 3.11
		250	$ 3.07
		500	$ 2.88
		1000	$ 2.82

Description

General part information

IO-XLR3 Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
