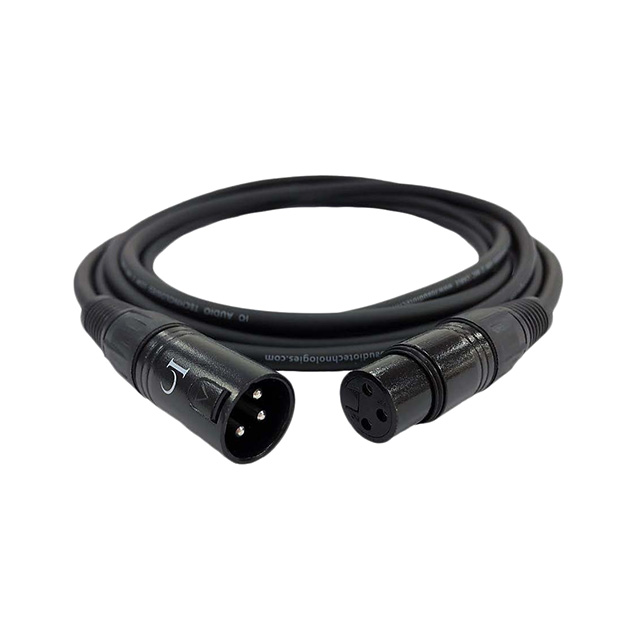

IO-XLR3-25-E

Active

IO Audio Technologies

CIRC CBL 3POS RCPT TO PLUG 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IO Audio Cross Ref Guide +1

IO-XLR3-25-E

Active

IO Audio Technologies

CIRC CBL 3POS RCPT TO PLUG 25'

Deep-Dive with AI

DocumentsDatasheet IO Audio Cross Ref Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.03
		10	$ 21.92
		25	$ 20.97
		50	$ 20.30
		100	$ 19.62
		250	$ 18.54
		500	$ 18.00

Description

General part information

IO-XLR3 Series

Circular Cable Assembly Shielded 25.0' (7.62m)

Documents

Technical documentation and resources

Datasheet

IO Audio Cross Ref Guide

XLR 3 Pin Comparison

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IO-XLR3-25-E	IO-XLR3 Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	3	3
1st Connector Number of Positions Loaded	All	All
1st Connector Shell Size - Insert	XLR	XLR
1st Connector Type	Receptacle	Receptacle
2nd Connector Gender	Female Sockets	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	-	3
2nd Connector Number of Positions Loaded	All	All
2nd Connector Shell Size - Insert	XLR	XLR
2nd Connector Type	Plug	Plug
Applications	-	Audio, Video, Lighting Control, Medical, Audio, Lighting Control
Assembly Configuration	Standard	Standard
Backshell Material, Plating	-	Zinc Die Cast
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Black	Silver, Black
Connector Type	-	Receptacle, Male Pins, Receptacle, Female Sockets, Female Sockets, Plug
Contact Finish - Mating	-	Silver, Gold
Contact Finish Thickness - Mating	-	1.97 Áin
Contact Finish Thickness - Mating	-	0.05 Ám
Contact Material	-	Phosphor Bronze, Brass
Current Rating (Amps)	-	6 - 15 A
Fastening Type	-	Latch Lock
Features	-	Ground, Strain Relief, Backshell, Board Guide
Insert Material	-	Nylon, Polyamide (PA), Plastic
Length	25 ft	6 - 50 ft
Length	7.62 m	1.83 - 15.24 m
Length	-	3 - 100 ft
Length	-	30.5 - 914.4 mm
Material Flammability Rating	-	UL94 HB
Mounting Feature	-	Flange
Mounting Type	-	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	70 °C
Orientation	-	Keyed
Primary Material	-	Metal, Plastic
Shell Finish	-	Nickel, Black
Shell Material	-	Zinc Die Cast
Shell Size - Insert	-	XLR
Shielding	Shielded	Shielded, Double Shielded, Unshielded
Termination	-	Solder
Voltage Rating	-	50 - 125 VAC

IO-XLR3 Series

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC BODY, JLX SERIES

Part	Shell Finish	Features	Applications	Connector Type	Color	Contact Finish - Mating	Mounting Feature	Shell Material	Fastening Type	Voltage Rating	Primary Material	Contact Material	Shielding	Insert Material	Current Rating (Amps)	Shell Size - Insert	Orientation	Assembly Configuration	1st Connector Gender	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Type	Cable Material	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector Gender	2nd Connector Shell Size - Insert	2nd Connector Type	Length	Length	2nd Connector Number of Positions Loaded	1st Connector Number of Positions Loaded	2nd Connector Number of Positions	Length [x]	Length [x]
IO Audio Technologies IO-XLR3-M-JLX	Nickel	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Silver	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-25-E					Black								Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	25 ft	7.62 m	All	All
IO Audio Technologies IO-XLR3-F-BK-JL	Black	Ground	Audio, Lighting Control, Medical, Video	Receptacle, Female Sockets	Black	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-M-JL	Nickel	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Silver	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-M-BK-JL	Black	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Black	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-6-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	6 ft	1.83 m	All	All	3
IO Audio Technologies IO-XLR3-6-E					Black								Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	6 ft	1.83 m	All	All	3
IO Audio Technologies IO-XLR3-3-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug			All	All	3	3 ft	914.4 mm
IO Audio Technologies IO-XLR3-50-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	50 ft	15.24 m	All	All
IO Audio Technologies IO-XLR3-10-X					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	10 ft	3.05 m	All	All
