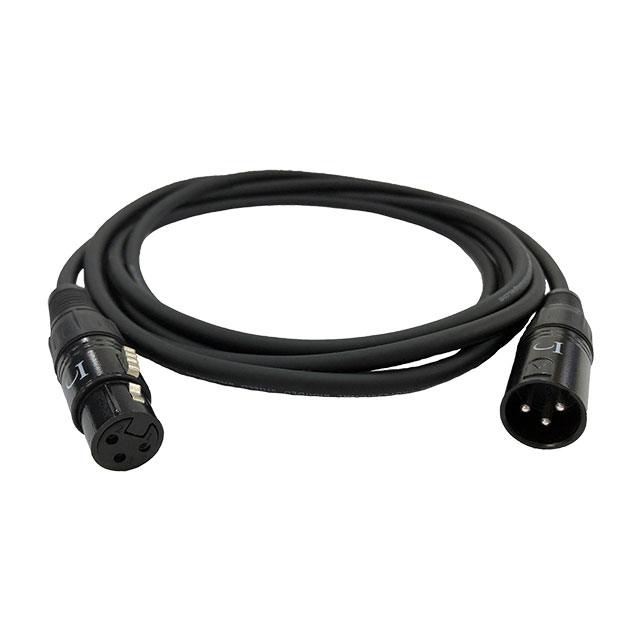

IO-XLR3-3-P

Active

IO Audio Technologies

CBL CIRC 3POS MALE TO FMALE 3'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IO-XLR3-3-P

Active

IO Audio Technologies

CBL CIRC 3POS MALE TO FMALE 3'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.45
		10	$ 15.99
		25	$ 15.16
		50	$ 14.94
		100	$ 13.18
		250	$ 12.30
		500	$ 12.04

Description

General part information

IO-XLR3 Series

Cable Assembly 3.00' (914.40mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IO-XLR3-3-P	IO-XLR3 Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	3	3
1st Connector Number of Positions Loaded	All	All
1st Connector Shell Size - Insert	XLR	XLR
1st Connector Type	Receptacle	Receptacle
2nd Connector Gender	Female Sockets	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	3	3
2nd Connector Number of Positions Loaded	All	All
2nd Connector Shell Size - Insert	XLR	XLR
2nd Connector Type	Plug	Plug
Applications	-	Audio, Video, Lighting Control, Medical, Audio, Lighting Control
Assembly Configuration	Standard	Standard
Backshell Material, Plating	-	Zinc Die Cast
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Color	Black	Silver, Black
Connector Type	-	Receptacle, Male Pins, Receptacle, Female Sockets, Female Sockets, Plug
Contact Finish - Mating	-	Silver, Gold
Contact Finish Thickness - Mating	-	1.97 Áin
Contact Finish Thickness - Mating	-	0.05 Ám
Contact Material	-	Phosphor Bronze, Brass
Current Rating (Amps)	-	6 - 15 A
Fastening Type	-	Latch Lock
Features	-	Ground, Strain Relief, Backshell, Board Guide
Insert Material	-	Nylon, Polyamide (PA), Plastic
Length	-	6 - 50 ft
Length	-	1.83 - 15.24 m
Length [x]	3 ft	3 - 100 ft
Length [x]	914.4 mm	30.5 - 914.4 mm
Material Flammability Rating	-	UL94 HB
Mounting Feature	-	Flange
Mounting Type	-	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	70 °C
Orientation	-	Keyed
Primary Material	-	Metal, Plastic
Shell Finish	-	Nickel, Black
Shell Material	-	Zinc Die Cast
Shell Size - Insert	-	XLR
Shielding	Double Shielded	Shielded, Double Shielded, Unshielded
Termination	-	Solder
Voltage Rating	-	50 - 125 VAC

IO-XLR3 Series

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC BODY, JLX SERIES

Part	Shell Finish	Features	Applications	Connector Type	Color	Contact Finish - Mating	Mounting Feature	Shell Material	Fastening Type	Voltage Rating	Primary Material	Contact Material	Shielding	Insert Material	Current Rating (Amps)	Shell Size - Insert	Orientation	Assembly Configuration	1st Connector Gender	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Type	Cable Material	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector Gender	2nd Connector Shell Size - Insert	2nd Connector Type	Length	Length	2nd Connector Number of Positions Loaded	1st Connector Number of Positions Loaded	2nd Connector Number of Positions	Length [x]	Length [x]
IO Audio Technologies IO-XLR3-M-JLX	Nickel	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Silver	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-25-E					Black								Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	25 ft	7.62 m	All	All
IO Audio Technologies IO-XLR3-F-BK-JL	Black	Ground	Audio, Lighting Control, Medical, Video	Receptacle, Female Sockets	Black	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-M-JL	Nickel	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Silver	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-M-BK-JL	Black	Ground	Audio, Lighting Control, Medical, Video	Male Pins, Receptacle	Black	Silver	Flange	Zinc Die Cast	Latch Lock	125 VAC	Metal	Phosphor Bronze	Shielded	Nylon, Polyamide (PA)	15 A	XLR	Keyed
IO Audio Technologies IO-XLR3-6-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	6 ft	1.83 m	All	All	3
IO Audio Technologies IO-XLR3-6-E					Black								Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	6 ft	1.83 m	All	All	3
IO Audio Technologies IO-XLR3-3-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug			All	All	3	3 ft	914.4 mm
IO Audio Technologies IO-XLR3-50-P					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	50 ft	15.24 m	All	All
IO Audio Technologies IO-XLR3-10-X					Black								Double Shielded					Standard	Male Pins	3	XLR	Receptacle	Polyvinyl Chloride (PVC)	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	Female Sockets	XLR	Plug	10 ft	3.05 m	All	All
