1579024-3

Obsolete

TE Application Tooling

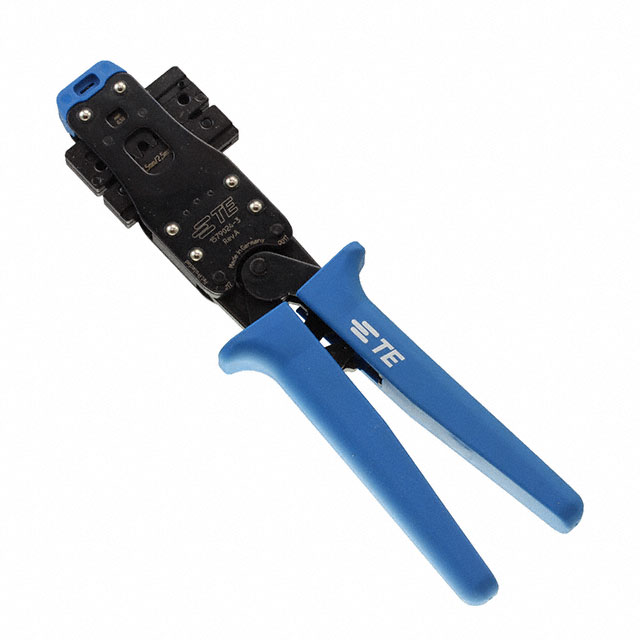

HT11K HAND TOOL 1.5, 2.5 DIA. CO

Search across all available documentation for this part.

Obsolete

TE Application Tooling

HT11K HAND TOOL 1.5, 2.5 DIA. CO

Technical Specifications

Parameters and characteristics for this part

Specification	1579024-3

For Use With/Related Products	Circular Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - mm² [Max]	1 mm²
Wire Gauge or Range - mm² [Min]	0.35 mm²

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Entry Location	For Use With/Related Products	Ratcheting	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
TE Application Tooling 1579024-3	0.35 mm²	1 mm²	Side Entry	Circular Contacts	Ratchet	Hand Crimper
TE Application Tooling 1-1579024-3	6 mm²	10 mm²	Side Entry	Contacts	Ratchet	Hand Crimper
TE Application Tooling 1579024-6			Side Entry	Rectangular Contacts	Ratchet	Hand Crimper	17 AWG	20 AWG
TE Application Tooling 1-1579024-6			Side Entry	Rectangular Contacts	Ratchet	Hand Crimper			2.5 mm˛	4 mm˛
TE Application Tooling 8-1579024-6			Side Entry	Quick Connects Terminals	Ratchet	Hand Crimper	10 AWG	22 AWG
TE Application Tooling 2-1579024-3	0.5 mm²	0.75 mm²	Side Entry	2-1411579-1	Ratchet	Hand Crimper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Hand Crimper Tool Circular Contacts
