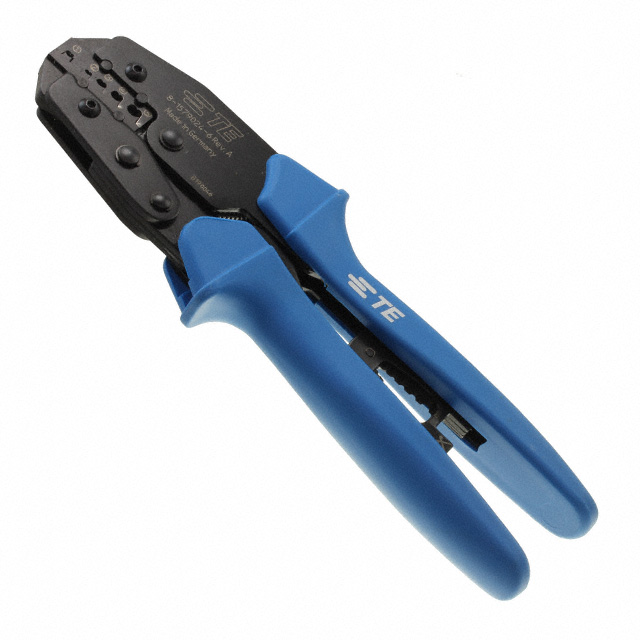

8-1579024-6

Active

TE Application Tooling

CRIMPAC, HT100, F- CRIMP, AWG22

Search across all available documentation for this part.

Active

TE Application Tooling

CRIMPAC, HT100, F- CRIMP, AWG22

Technical Specifications

Parameters and characteristics for this part

Specification	8-1579024-6

For Use With/Related Products	Quick Connects Terminals
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Entry Location	For Use With/Related Products	Ratcheting	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
TE Application Tooling 1579024-3	0.35 mm²	1 mm²	Side Entry	Circular Contacts	Ratchet	Hand Crimper
TE Application Tooling 1-1579024-3	6 mm²	10 mm²	Side Entry	Contacts	Ratchet	Hand Crimper
TE Application Tooling 1579024-6			Side Entry	Rectangular Contacts	Ratchet	Hand Crimper	17 AWG	20 AWG
TE Application Tooling 1-1579024-6			Side Entry	Rectangular Contacts	Ratchet	Hand Crimper			2.5 mm˛	4 mm˛
TE Application Tooling 8-1579024-6			Side Entry	Quick Connects Terminals	Ratchet	Hand Crimper	10 AWG	22 AWG
TE Application Tooling 2-1579024-3	0.5 mm²	0.75 mm²	Side Entry	2-1411579-1	Ratchet	Hand Crimper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Quick Connects Terminals
