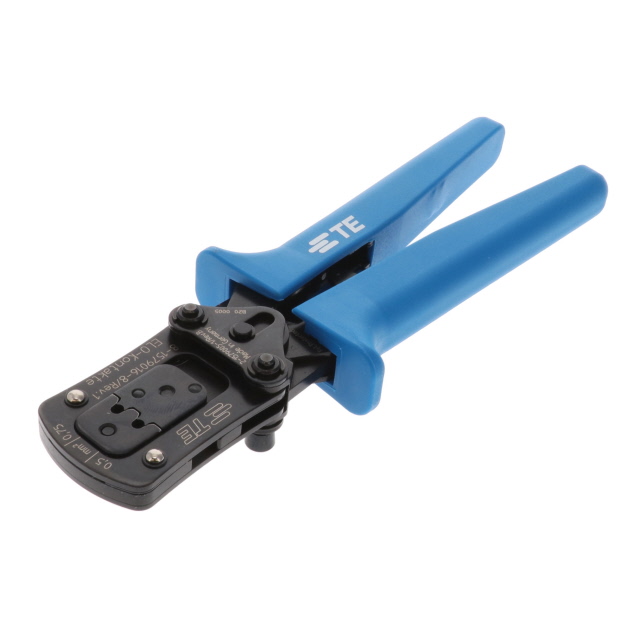

2-1579024-3

Obsolete

TE Application Tooling

HTV10 HAND TOOL ELO-KONTAKTE, 0,

Search across all available documentation for this part.

Obsolete

TE Application Tooling

HTV10 HAND TOOL ELO-KONTAKTE, 0,

Technical Specifications

Parameters and characteristics for this part

Specification	2-1579024-3

For Use With/Related Products	2-1411579-1
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - mm² [Max]	0.75 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Entry Location	For Use With/Related Products	Ratcheting	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
TE Application Tooling 1579024-3	0.35 mm²	1 mm²	Side Entry	Circular Contacts	Ratchet	Hand Crimper
TE Application Tooling 1-1579024-3	6 mm²	10 mm²	Side Entry	Contacts	Ratchet	Hand Crimper
TE Application Tooling 1579024-6			Side Entry	Rectangular Contacts	Ratchet	Hand Crimper	17 AWG	20 AWG
TE Application Tooling 1-1579024-6			Side Entry	Rectangular Contacts	Ratchet	Hand Crimper			2.5 mm˛	4 mm˛
TE Application Tooling 8-1579024-6			Side Entry	Quick Connects Terminals	Ratchet	Hand Crimper	10 AWG	22 AWG
TE Application Tooling 2-1579024-3	0.5 mm²	0.75 mm²	Side Entry	2-1411579-1	Ratchet	Hand Crimper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 484.50

General part information

Hand Crimper Tool 2-1411579-1

Technical documentation and resources

No documents available
