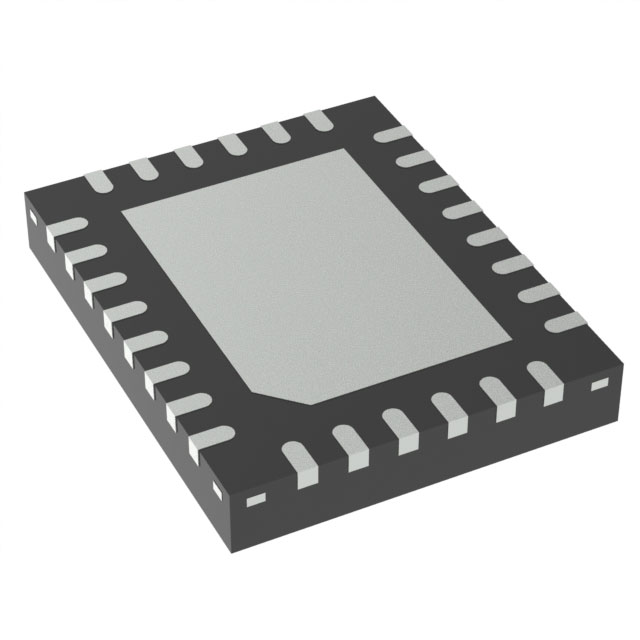

OPT3101RHFR
ActiveTOF-BASED LONG-RANGE PROXIMITY AND DISTANCE SENSOR ANALOG FRONT END (AFE) 28-VQFN -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.
OPT3101RHFR
ActiveTOF-BASED LONG-RANGE PROXIMITY AND DISTANCE SENSOR ANALOG FRONT END (AFE) 28-VQFN -40 TO 85
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OPT3101RHFR | OPT3101 Series |
|---|---|---|
| Function | - | Analog Front End (AFE) |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits | 16 bits | 16 bits |
| Number of Channels | 3 | 3 |
| Package / Case | 28-VFQFN Exposed Pad | 28-VFQFN Exposed Pad |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 28-VQFN (5x4) | 28-VQFN (5x4) |
| Type | - | Interface |
| Utilized IC / Part | - | OPT3101 |
| Voltage - Supply, Analog [Max] | 1.9 V, 3.6 V | 1.9 - 3.6 V |
| Voltage - Supply, Analog [Min] | 1.7 V, 3 V | 1.7 - 3 V |
| Voltage - Supply, Digital [Max] | 1.9 V | 1.9 - 3.6 V |
| Voltage - Supply, Digital [Min] | 1.7 V | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | Cut Strips | 1 | $ 4.46 | |
| 10 | $ 4.04 | |||
| 25 | $ 4.00 | |||
| 100 | $ 3.81 | |||
| DigiKey | Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | 1 | $ 7.05 | |
| 5 | $ 6.19 | |||
| 10 | $ 5.89 | |||
| 25 | $ 5.53 | |||
| 50 | $ 5.29 | |||
| 100 | $ 5.08 | |||
| 500 | $ 4.67 | |||
| 1000 | $ 4.52 | |||
| 3000 | $ 3.16 | |||
| Digikey | Cut Tape (CT) | 1 | $ 8.55 | |
| 10 | $ 6.84 | |||
| 25 | $ 6.33 | |||
| 100 | $ 5.47 | |||
| 500 | $ 5.13 | |||
| 1000 | $ 4.79 | |||
| Digi-Reel® | 1 | $ 8.55 | ||
| 10 | $ 6.84 | |||
| 25 | $ 6.33 | |||
| 100 | $ 5.47 | |||
| 500 | $ 5.13 | |||
| 1000 | $ 4.79 | |||
| Tape & Reel (TR) | 3000 | $ 3.16 | ||
| LCSC | N/A | 1 | $ 2.38 | |
| 10 | $ 2.11 | |||
| 30 | $ 1.92 | |||
| 100 | $ 1.75 | |||
| 500 | $ 1.67 | |||
| 1000 | $ 1.64 | |||
| Mouser Electronics | N/A | 1 | $ 5.31 | |
| 10 | $ 4.55 | |||
| 100 | $ 4.04 | |||
| 250 | $ 4.03 | |||
| 500 | $ 3.80 | |||
| 1000 | $ 3.55 | |||
| 3000 | $ 3.16 | |||
| Texas Instruments | LARGE T&R | 1 | $ 4.66 | |
| 100 | $ 3.80 | |||
| 250 | $ 2.98 | |||
| 1000 | $ 2.53 | |||
| Verical | N/A | 2 | $ 3.81 | |
OPT3101 Series
ToF-based long-range proximity and distance sensor analog front end (AFE)
| Part | Mounting Type | Package / Case | Supplier Device Package | Number of Channels | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Number of Bits | Type | Utilized IC / Part | Supplied Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments OPT3101RHFR | Surface Mount | 28-VFQFN Exposed Pad | 28-VQFN (5x4) | 3 | 1.7 V | 1.9 V | 1.9 V, 3.6 V | 1.7 V, 3 V | 16 bits | ||||
Texas Instruments OPT3101EVM | Interface | OPT3101 | Board(s) | Analog Front End (AFE) | |||||||||
Texas Instruments OPT3101RHFT | Surface Mount | 28-VFQFN Exposed Pad | 28-VQFN (5x4) | 3 | 1.7 V | 3.6 V | 3.6 V | 1.7 V | 16 bits |
Description
General part information
OPT3101 Series
The OPT3101 device is a high-speed, high-resolution AFE for continuous-wave, time-of-flight based proximity sensing and range finding. The device integrates the complete depth processing pipeline that includes the ADC, timing sequencer, and the digital processing engine. The device also has a built-in illumination driver that covers most of the target applications.
Given the high ambient rejection ratio, the device can support very high ambient conditions, including full sunlight of 130 klx.
The timing sequencer is highly configurable to provide for application-specific trade-offs of power versus performance.
