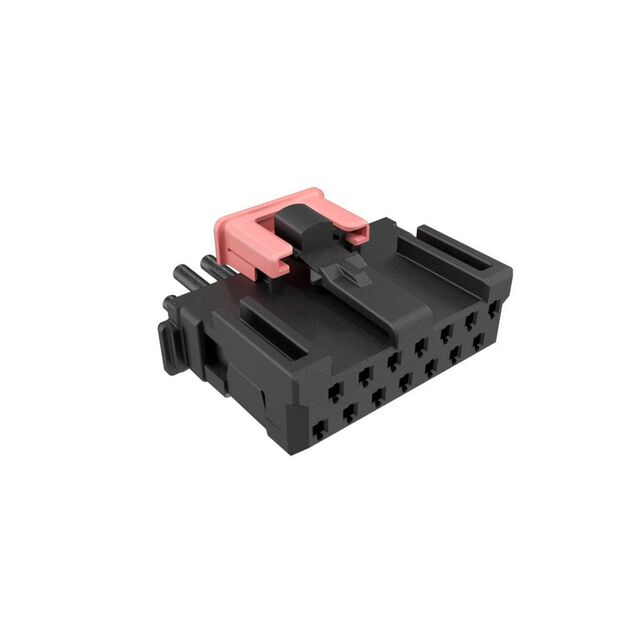

10142348-014LF
ActiveAmphenol ICC (FCI)
CONN RCPT HSG 14POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
10142348-014LF
ActiveAmphenol ICC (FCI)
CONN RCPT HSG 14POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10142348-014LF |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing [custom] | 2.43 mm |
| Row Spacing [custom] | 0.096 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.25 | |
| 10 | $ 1.72 | |||
| 25 | $ 1.55 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.20 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 1.04 | |||
| 2500 | $ 0.95 | |||
Description
General part information
10142348 Series
14 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
