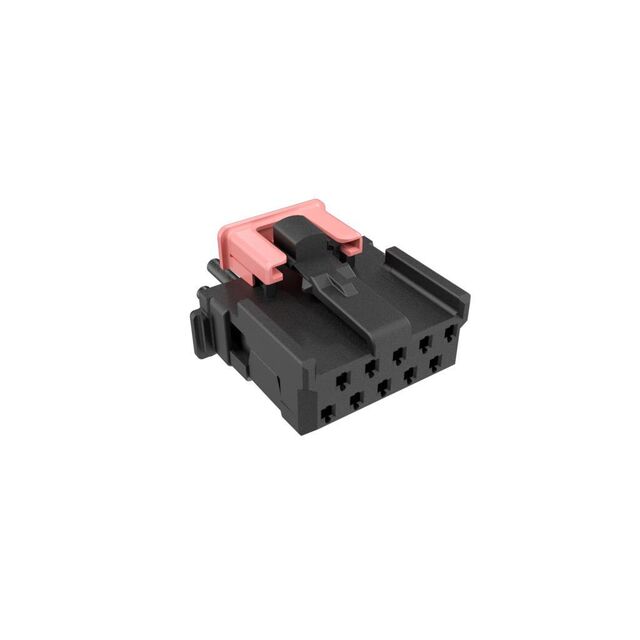

10142348-010LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents10161117-001 microspace productpresentation Other Related Document +1

10142348-010LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 10POS 2.54MM

Deep-Dive with AI

Documents10161117-001 microspace productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10142348-010LF

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing [custom]	2.43 mm
Row Spacing [custom]	0.096 in

10142348 Series

Part	Contact Termination	Contact Type	Row Spacing [custom]	Row Spacing [custom]	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Fastening Type	Connector Type	Number of Rows	Number of Positions	Note	Color	Mounting Type	Number of Positions
Amphenol ICC (FCI) 10142348-010LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	10	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-006LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	6	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-012LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	12	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-016LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2		Contacts Not Included	Black	Free Hanging (In-Line)	16
Amphenol ICC (FCI) 10142348-014LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	14	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-005LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2		Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-007LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	7	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-009LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	9	Contacts Not Included	Black	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.12
		10	$ 1.62
		25	$ 1.46
		50	$ 1.35
		100	$ 1.25
		250	$ 1.13
		500	$ 1.05
		1000	$ 0.97
		2500	$ 0.89

Description

General part information

10142348 Series

10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

10161117-001

microspace productpresentation Other Related Document

gs-20-0513Other Related Documents

Datasheet
