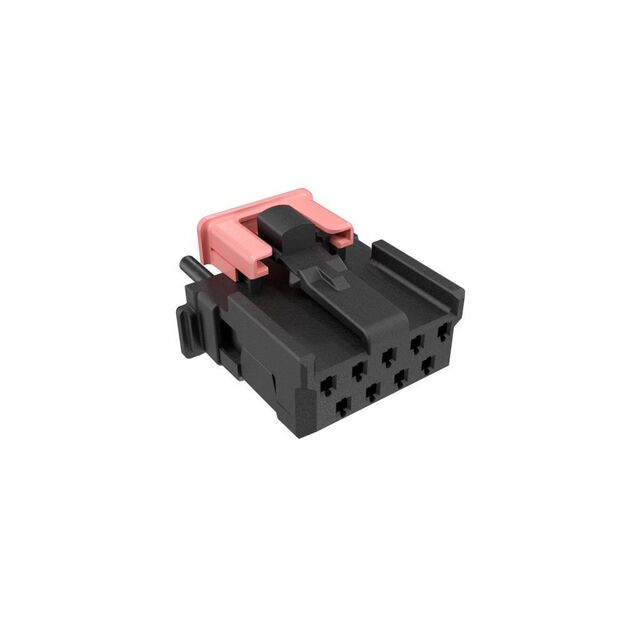

10142348-009LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 9POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicroSpace™ Product Presentation MicroSpace™ Application Specification +1

10142348-009LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 9POS

Deep-Dive with AI

DocumentsMicroSpace™ Product Presentation MicroSpace™ Application Specification +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10142348-009LF

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing [custom]	2.43 mm
Row Spacing [custom]	0.096 in

10142348 Series

Part	Contact Termination	Contact Type	Row Spacing [custom]	Row Spacing [custom]	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Fastening Type	Connector Type	Number of Rows	Number of Positions	Note	Color	Mounting Type	Number of Positions
Amphenol ICC (FCI) 10142348-010LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	10	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-006LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	6	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-012LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	12	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-016LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2		Contacts Not Included	Black	Free Hanging (In-Line)	16
Amphenol ICC (FCI) 10142348-014LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	14	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-005LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2		Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-007LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	7	Contacts Not Included	Black	Free Hanging (In-Line)
Amphenol ICC (FCI) 10142348-009LF	Crimp	Female Socket	2.43 mm	0.096 in	2.54 mm	0.1 in	Thermoplastic	-40 °C	130 °C	Terminal Position Lock (TPA)	Latch Lock	Receptacle	2	9	Contacts Not Included	Black	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	900	$ 0.96

10142348-009LF

Deep-Dive with AI

10142348-009LF

Deep-Dive with AI

Technical Specifications

10142348 Series

Pricing

Description

10142348 Series

Documents

MicroSpace™ Product Presentation

MicroSpace™ Application Specification

MicroSpace™ Product Specification

10142348 Series
