HD16-5-16S

Active

TE Connectivity Raychem Cable Protection

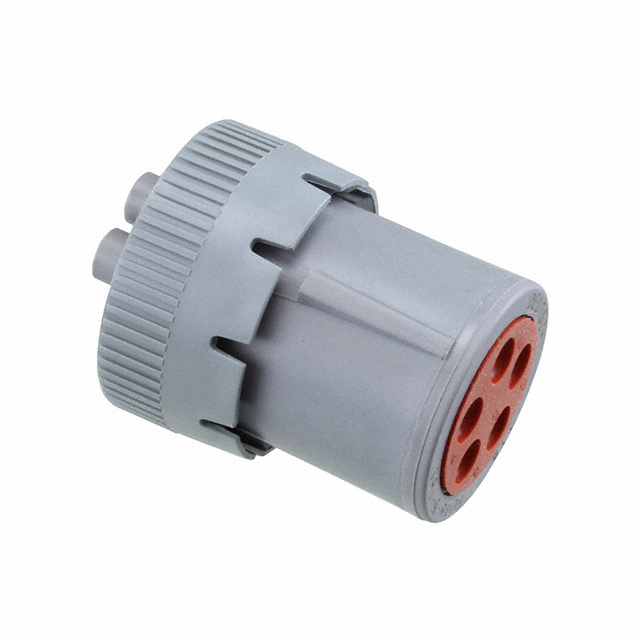

CONN PLUG HSG FMALE 5POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HD16-5-16S

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Plastic
Material Flammability Rating	UL94 V-1
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert [Max]	16
Shell Size - Insert [Min]	5
Shielding	Unshielded
Type	For Female Sockets

HD16 Series

Part	Number of Positions	Contact Type	Contact Size	Orientation	Type	Connector Type	Shielding	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Insert Material	Housing Color	Fastening Type	Primary Material	Mounting Type	Note	Features	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Ingress Protection
TE Connectivity Raychem Cable Protection HD16-9-1939SE	9	Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	39	9	Polyamide (PA) Nylon Glass Filled	Black	Bayonet Lock	Metal	Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	UL94 V-1	IP68 IP6K9K
TE Connectivity Raychem Cable Protection HD16-6-12S	6	Crimp	12	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	12	6	Polyamide (PA) Nylon Glass Filled	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included		Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-5-16S		Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	16	5	Plastic	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Plastic	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-3-96S		Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	96	3	Polyamide (PA) Nylon Glass Filled	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-6-96S	6	Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	96	6	Polyamide (PA) Nylon Glass Filled	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-9-1939S	9	Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	39	9	Polyamide (PA) Nylon Glass Filled	Black	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.39
		10	$ 9.35
		25	$ 8.81
		50	$ 8.58
		100	$ 8.36
		250	$ 7.45
		500	$ 7.00
		1000	$ 6.19

Description

General part information

HD16 Series

5 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

No documents available
