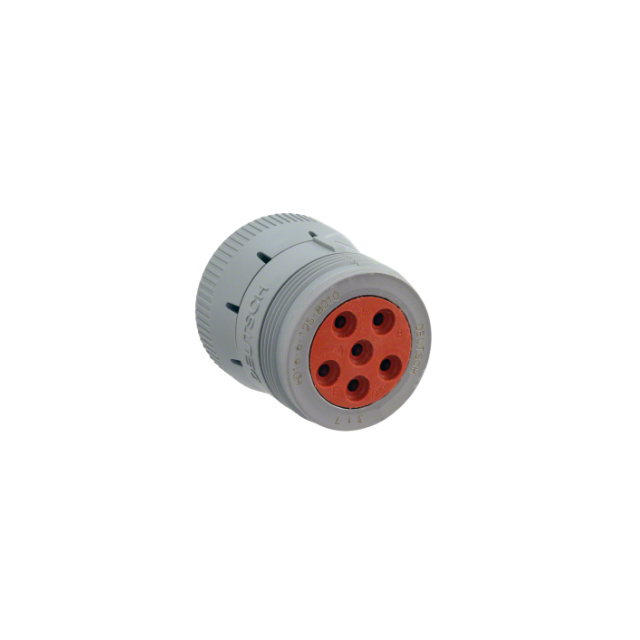

HD16-6-12S
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG FMALE 6POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
HD16-6-12S
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG FMALE 6POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HD16-6-12S |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Gray |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-1 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert [Max] | 12 |
| Shell Size - Insert [Min] | 6 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.83 | |
| 10 | $ 10.49 | |||
| 25 | $ 10.08 | |||
| 50 | $ 9.68 | |||
| 100 | $ 9.14 | |||
| 250 | $ 8.34 | |||
| 500 | $ 7.80 | |||
| 1000 | $ 7.15 | |||
Description
General part information
HD16 Series
6 Position Circular Connector Plug Housing Free Hanging (In-Line)
