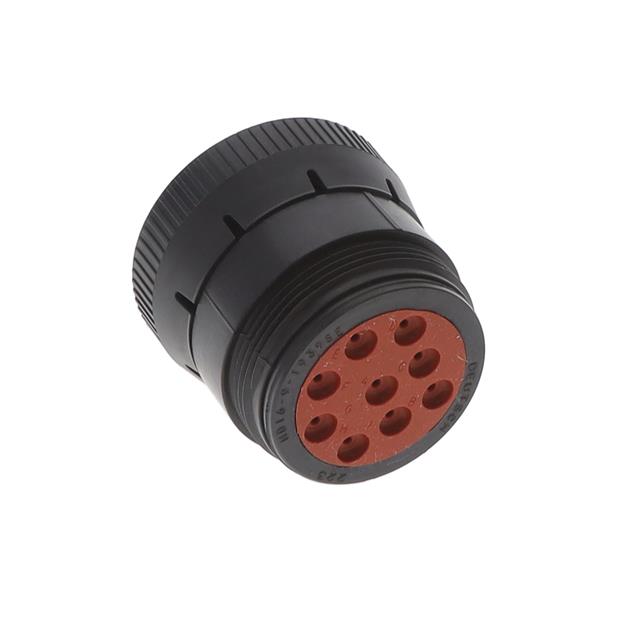

HD16-9-1939SE

Active

TE Connectivity Raychem Cable Protection

PLUG ASM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HD16-9-1939SE

Active

TE Connectivity Raychem Cable Protection

PLUG ASM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HD16-9-1939SE

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP6K9K, IP68
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-1
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert [Max]	39
Shell Size - Insert [Min]	9
Shielding	Unshielded
Type	For Female Sockets

HD16 Series

Part	Number of Positions	Contact Type	Contact Size	Orientation	Type	Connector Type	Shielding	Contact Shape	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Insert Material	Housing Color	Fastening Type	Primary Material	Mounting Type	Note	Features	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Ingress Protection
TE Connectivity Raychem Cable Protection HD16-9-1939SE	9	Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	39	9	Polyamide (PA) Nylon Glass Filled	Black	Bayonet Lock	Metal	Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-55 °C	125 °C	UL94 V-1	IP68 IP6K9K
TE Connectivity Raychem Cable Protection HD16-6-12S	6	Crimp	12	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	12	6	Polyamide (PA) Nylon Glass Filled	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included		Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-5-16S		Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	16	5	Plastic	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Plastic	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-3-96S		Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	96	3	Polyamide (PA) Nylon Glass Filled	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-6-96S	6	Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	96	6	Polyamide (PA) Nylon Glass Filled	Gray	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection HD16-9-1939S	9	Crimp	16	Keyed	For Female Sockets	Plug Housing	Unshielded	Circular	39	9	Polyamide (PA) Nylon Glass Filled	Black	Bayonet Lock		Free Hanging (In-Line)	Contacts Not Included	Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	125 °C	UL94 V-1	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.06
		10	$ 10.47

Description

General part information

HD16 Series

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
