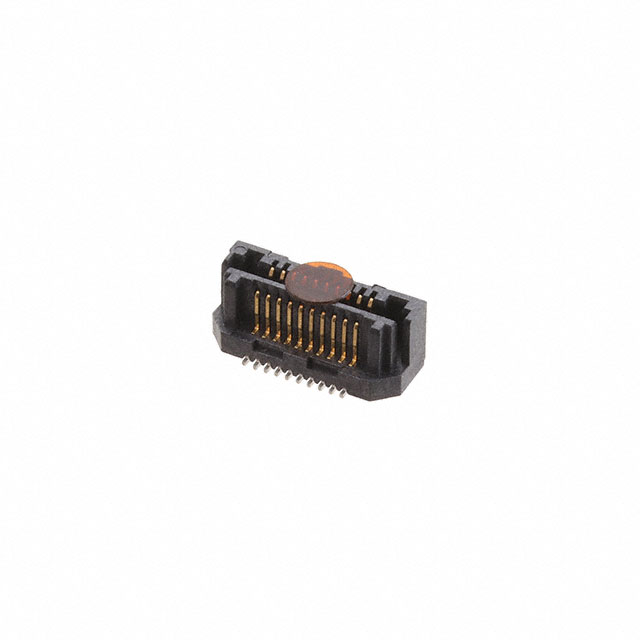

LSS-110-01-F-DV-A-K-TR

Active

Samtec Inc.

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLSS Datasheet 0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip +1

LSS-110-01-F-DV-A-K-TR

Active

Samtec Inc.

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

DocumentsLSS Datasheet 0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-110-01-F-DV-A-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	7 mm, 6 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-110 Series

Board to Board & Mezzanine Connectors 0.635 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions	Features	Height Above Board	Height Above Board
Samtec Inc. LSS-110-02-L-DV	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20
Samtec Inc. LSS-110-02-F-DV-A-K-TR	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place
Samtec Inc. LSS-120-02-L-DV-A	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	40	Board Guide
Samtec Inc. LSS-110-01-F-DV-A-TR	0.64 mm	0.025 in	6 mm 7 mm 9 mm	Surface Mount	Gold			3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide	0.169 in	4.3 mm
Samtec Inc. LSS-110-03-L-DV-A-K-TR	0.64 mm	0.025 in	7 mm 8 mm 10 mm	Surface Mount	Gold			10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place	0.209 in	5.3 mm
Samtec Inc. LSS-110-02-L-DV-A-TR	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide
Samtec Inc. LSS-110-03-F-DV-A-TR	0.64 mm	0.025 in	7 mm 8 mm 10 mm	Surface Mount	Gold			3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide	0.209 in	5.3 mm
Samtec Inc. LSS-110-01-L-DV-A-K	0.64 mm	0.025 in	6 mm 7 mm 9 mm	Surface Mount	Gold			10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place	0.169 in	4.3 mm
Samtec Inc. LSS-110-02-F-DV-LC-K-TR	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Lock Pick and Place
Samtec Inc. LSS-110-01-F-DV-A-K-TR	0.64 mm	0.025 in	6 mm 7 mm 9 mm	Surface Mount	Gold			3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place	0.169 in	4.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.47
		50	$ 2.83
		100	$ 2.41
	Digi-Reel®	1	$ 3.47
		50	$ 2.83
		100	$ 2.41
	Tape & Reel (TR)	750	$ 2.14
		1500	$ 1.93

Description

General part information

LSS-110 Series

Board to Board & Mezzanine Connectors 0.635 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

LSS-110-01-F-DV-A-K-TR
