LSS-110-03-F-DV-A-TR

Active

Samtec Inc.

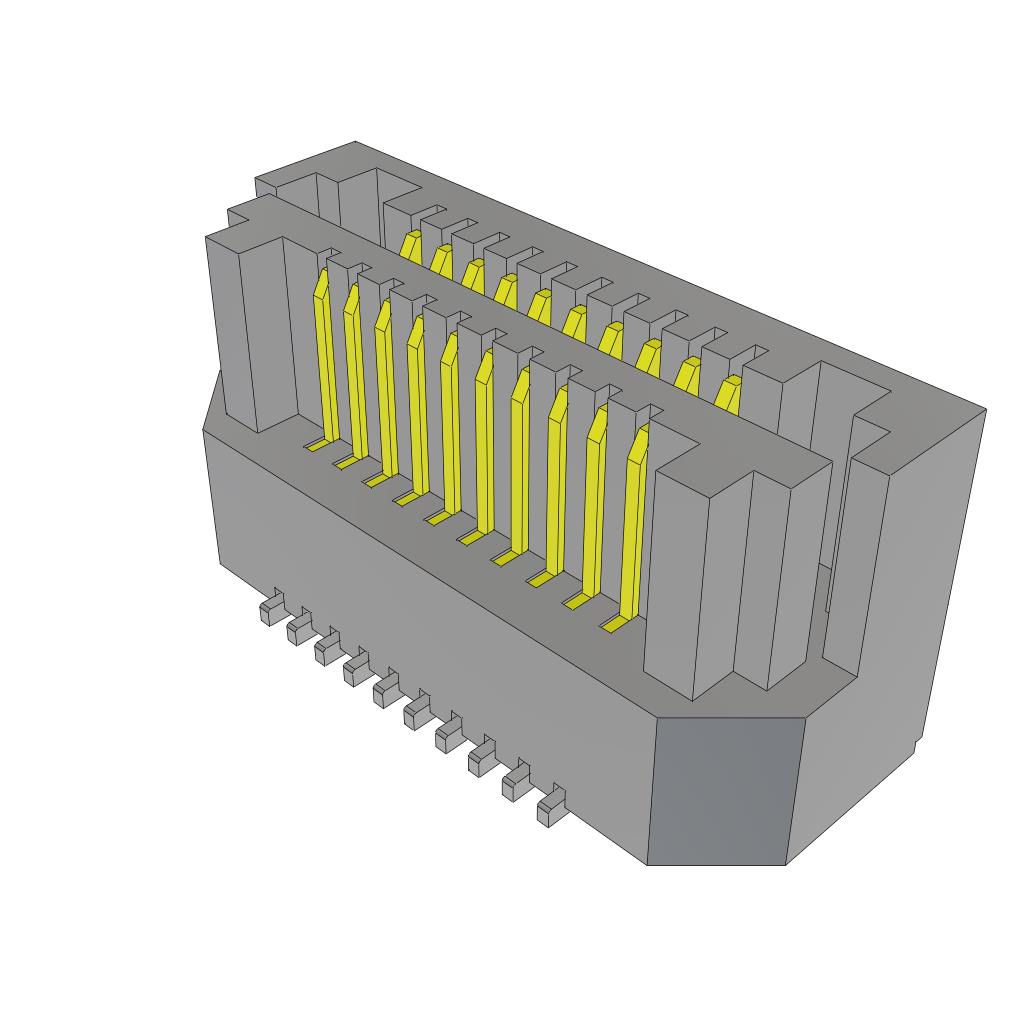

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip Datasheet +1

LSS-110-03-F-DV-A-TR

Active

Samtec Inc.

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

Documents0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-110-03-F-DV-A-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board	5.3 mm
Height Above Board	0.209 in
Mated Stacking Heights	8 mm, 10 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-110 Series

Board to Board & Mezzanine Connectors 0.635 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions	Features	Height Above Board	Height Above Board
Samtec Inc. LSS-110-02-L-DV	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20
Samtec Inc. LSS-110-02-F-DV-A-K-TR	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place
Samtec Inc. LSS-120-02-L-DV-A	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	40	Board Guide
Samtec Inc. LSS-110-01-F-DV-A-TR	0.64 mm	0.025 in	6 mm 7 mm 9 mm	Surface Mount	Gold			3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide	0.169 in	4.3 mm
Samtec Inc. LSS-110-03-L-DV-A-K-TR	0.64 mm	0.025 in	7 mm 8 mm 10 mm	Surface Mount	Gold			10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place	0.209 in	5.3 mm
Samtec Inc. LSS-110-02-L-DV-A-TR	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide
Samtec Inc. LSS-110-03-F-DV-A-TR	0.64 mm	0.025 in	7 mm 8 mm 10 mm	Surface Mount	Gold			3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide	0.209 in	5.3 mm
Samtec Inc. LSS-110-01-L-DV-A-K	0.64 mm	0.025 in	6 mm 7 mm 9 mm	Surface Mount	Gold			10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place	0.169 in	4.3 mm
Samtec Inc. LSS-110-02-F-DV-LC-K-TR	0.64 mm	0.025 in	9 mm 10 mm 12 mm	Surface Mount	Gold	0.287 in	7.3 mm	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Lock Pick and Place
Samtec Inc. LSS-110-01-F-DV-A-K-TR	0.64 mm	0.025 in	6 mm 7 mm 9 mm	Surface Mount	Gold			3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	2	20	Board Guide Pick and Place	0.169 in	4.3 mm
