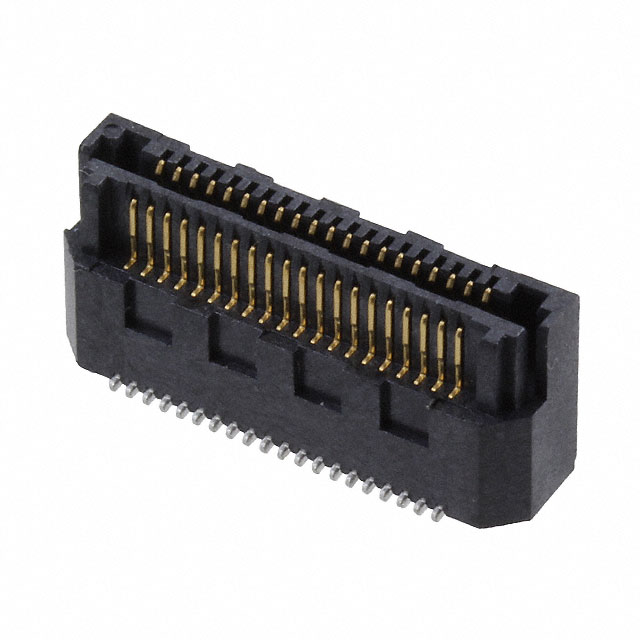

Specification	LSS-120-02-L-DV-A

Connector Type	Non-Gendered, Hermaphroditic, Self Mating
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Board Guide
Height Above Board	0.287 in
Mated Stacking Height Options	10mm, 9mm, 12mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch	0.025 in

LSS-120 Series

Part	Pitch	Number of Positions	Features	Number of Rows	Mounting Type	Contact Finish	Mated Stacking Height Options	Height Above Board	Contact Finish Thickness	Connector Type
Samtec Inc. LSS-120-01-F-DV-A-TR	0.025 in	40	Board Guide	2	Surface Mount	Gold	6mm 7mm 9mm	0.169 in	3 µin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-02-L-DV-A	0.025 in	40	Board Guide	2	Surface Mount	Gold	10mm 12mm 9mm	0.287 in	10 Ąin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-02-F-DV-K	0.025 in	40	Pick and Place	2	Surface Mount	Gold	10mm 12mm 9mm	0.287 in	3 µin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-02-L-DV-LC-K-TR	0.025 in	40	Board Lock Pick and Place	2	Surface Mount	Gold	10mm 12mm 9mm	0.287 in	10 Ąin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-02-F-DV-A-K-TR	0.025 in	40	Board Guide Pick and Place	2	Surface Mount	Gold	10mm 12mm 9mm	0.287 in	3 µin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-01-F-DV-A	0.025 in	40	Board Guide	2	Surface Mount	Gold	6mm 7mm 9mm	0.169 in	3 µin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-02-L-DV-A-TR	0.025 in	40	Board Guide	2	Surface Mount	Gold	10mm 12mm 9mm	0.287 in	10 Ąin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-02-L-DV-A-K-TR	0.025 in	40	Board Guide Pick and Place	2	Surface Mount	Gold	10mm 12mm 9mm	0.287 in	10 Ąin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-03-L-DV-LC-K	0.025 in	40	Board Lock Pick and Place	2	Surface Mount	Gold	10mm 7mm 8mm	0.209 in	10 Ąin	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LSS-120-01-L-DV-A-TR	0.025 in	40	Board Guide	2	Surface Mount	Gold	6mm 7mm 9mm	0.169 in	10 Ąin	Hermaphroditic Non-Gendered Self Mating

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LSS Datasheet

0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip
