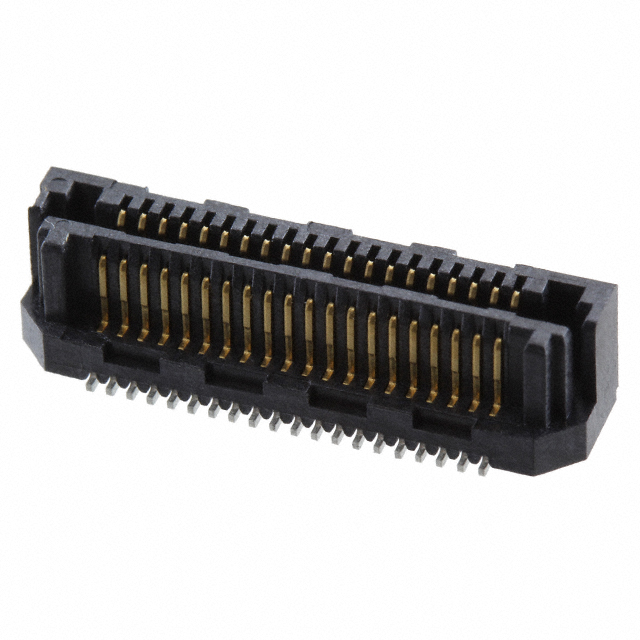

LSS-120-01-F-DV-A

Active

Samtec Inc.

CONN SELF-MATE 40POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLSS Datasheet 0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip +1

LSS-120-01-F-DV-A

Active

Samtec Inc.

CONN SELF-MATE 40POS SMD GOLD

Deep-Dive with AI

DocumentsLSS Datasheet 0.635 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSS-120-01-F-DV-A

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	7 mm, 6 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

LSS-120 Series

Part	Height Above Board	Height Above Board	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Features	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. LSS-120-01-F-DV-A-TR	0.169 in	4.3 mm	Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Guide	6 mm 7 mm 9 mm
Samtec Inc. LSS-120-02-L-DV-A			Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Guide	9 mm 10 mm 12 mm	0.287 in	7.3 mm
Samtec Inc. LSS-120-02-F-DV-K			Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Pick and Place	9 mm 10 mm 12 mm	0.287 in	7.3 mm
Samtec Inc. LSS-120-02-F-DV-A-K-TR			Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Guide Pick and Place	9 mm 10 mm 12 mm	0.287 in	7.3 mm
Samtec Inc. LSS-120-01-F-DV-A	0.169 in	4.3 mm	Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Guide	6 mm 7 mm 9 mm
Samtec Inc. LSS-120-02-L-DV-A-K-TR			Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Guide Pick and Place	9 mm 10 mm 12 mm	0.287 in	7.3 mm
Samtec Inc. LSS-120-03-L-DV-LC-K	0.209 in	5.3 mm	Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Lock Pick and Place	7 mm 8 mm 10 mm
Samtec Inc. LSS-120-01-L-DV-A-TR	0.169 in	4.3 mm	Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Guide	6 mm 7 mm 9 mm
Samtec Inc. LSS-120-03-F-DV-A	0.209 in	5.3 mm	Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in	Board Guide	7 mm 8 mm 10 mm
Samtec Inc. LSS-120-02-L-DV-LC			Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	40	2	Gold	0.64 mm	0.025 in		9 mm 10 mm 12 mm	0.287 in	7.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.27
		50	$ 3.48
		100	$ 2.96
		500	$ 2.63
		1000	$ 2.46

Description

General part information

LSS-120 Series

40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
