KX15-50K Series

Part	Number of Positions	Pitch	Number of Rows	Mounting Type	Connector Type	Height Above Board	Contact Finish	Features	Contact Finish Thickness	Mated Stacking Height Options
JAE Electronics KX15-50KLDL-E1000E	50	0.031 in	2	Right Angle Surface Mount	Center Strip Contacts Plug	0.226 in	Gold	Board Guide Solder Retention	4 µin
JAE Electronics KX15-50K3D-E1000E	50	0.031 in	2	Surface Mount	Center Strip Contacts Plug	0.187 in	Gold	Board Guide Solder Retention	4 µin	11mm 14mm 17mm 5mm 8mm
JAE Electronics KX15-50K2DE	50	0.031 in	2	Surface Mount	Center Strip Contacts Plug	0.148 in	Gold	Board Guide Solder Retention	4 µin	10mm 13mm 16mm 4mm 7mm
JAE Electronics KX15-50K4DE	50	0.031 in	2	Surface Mount	Center Strip Contacts Plug	0.226 in	Gold	Board Guide Solder Retention	4 µin	12mm 15mm 18mm 6mm 9mm

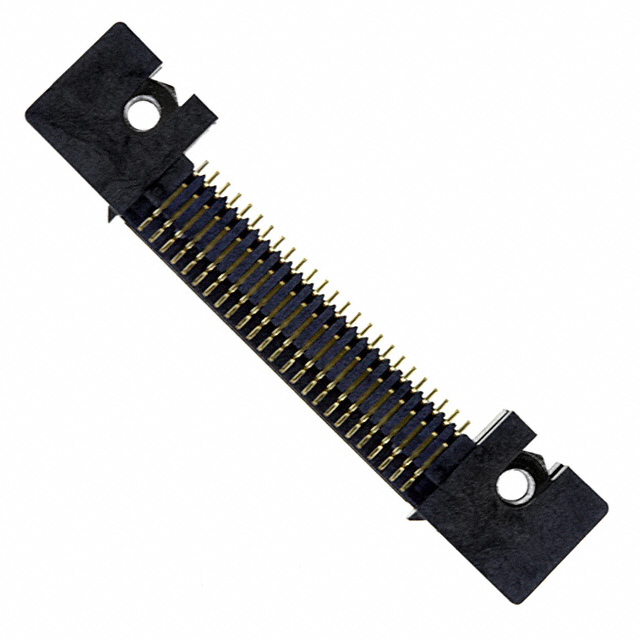

JAE Electronics KX15-50KLNL	50	0.031 in	2	Right Angle Surface Mount	Center Strip Contacts Plug	0.226 in	Gold	Board Guide	4 µin
JAE Electronics KX15-50K3DE	50	0.031 in	2	Surface Mount	Center Strip Contacts Plug	0.187 in	Gold	Board Guide Solder Retention	4 µin	11mm 14mm 17mm 5mm 8mm
JAE Electronics KX15-50K8DE	50	0.031 in	2	Surface Mount	Center Strip Contacts Plug	0.384 in	Gold	Board Guide Solder Retention	4 µin
