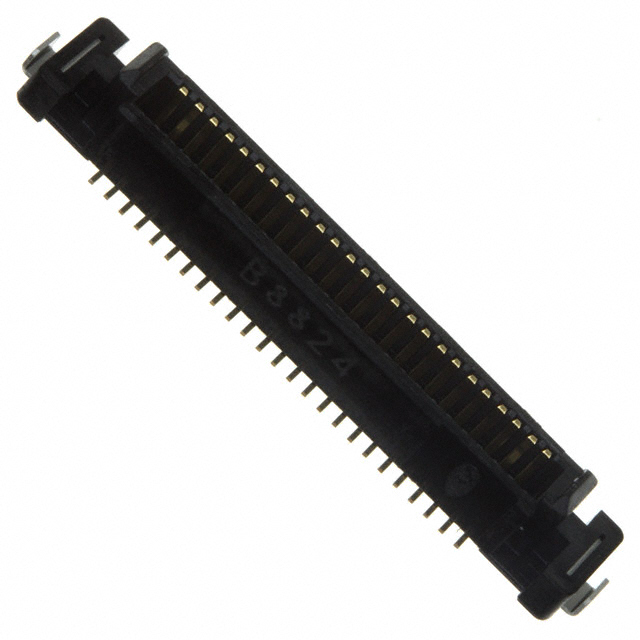

KX15-50K2DE

Obsolete

JAE Electronics

CONN PLUG 50POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN PLUG 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX15-50K2DE

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	3.75 mm
Height Above Board	0.148 in
Mated Stacking Heights	13 mm, 16 mm, 4 mm, 7 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Features	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Height Above Board [z]	Mated Stacking Heights	Height Above Board [z]
JAE Electronics KX15-50KLDL-E1000E	Surface Mount Right Angle	4 Áin	0.1 Ám	Gold	2	Board Guide Solder Retention	50	0.226 in	5.74 mm	0.8 mm	0.031 in
JAE Electronics KX15-50K3D-E1000E	Surface Mount	4 Áin	0.1 Ám	Gold	2	Board Guide Solder Retention	50		4.75 mm	0.8 mm	0.031 in	0.187 in	5 mm 8 mm 11 mm 14 mm 17 mm
JAE Electronics KX15-50K2DE	Surface Mount	4 Áin	0.1 Ám	Gold	2	Board Guide Solder Retention	50	0.148 in	3.75 mm	0.8 mm	0.031 in		4 mm 7 mm 10 mm 13 mm 16 mm
JAE Electronics KX15-50K4DE	Surface Mount	4 Áin	0.1 Ám	Gold	2	Board Guide Solder Retention	50	0.226 in	5.74 mm	0.8 mm	0.031 in		6 mm 9 mm 12 mm 15 mm 18 mm
JAE Electronics KX15-50KLNL	Surface Mount Right Angle	4 Áin	0.1 Ám	Gold	2	Board Guide	50	0.226 in	5.74 mm	0.8 mm	0.031 in
JAE Electronics KX15-50K3DE	Surface Mount	4 Áin	0.1 Ám	Gold	2	Board Guide Solder Retention	50		4.75 mm	0.8 mm	0.031 in	0.187 in	5 mm 8 mm 11 mm 14 mm 17 mm
JAE Electronics KX15-50K8DE	Surface Mount	4 Áin	0.1 Ám	Gold	2	Board Guide Solder Retention	50			0.8 mm	0.031 in	0.384 in		9.75 mm
