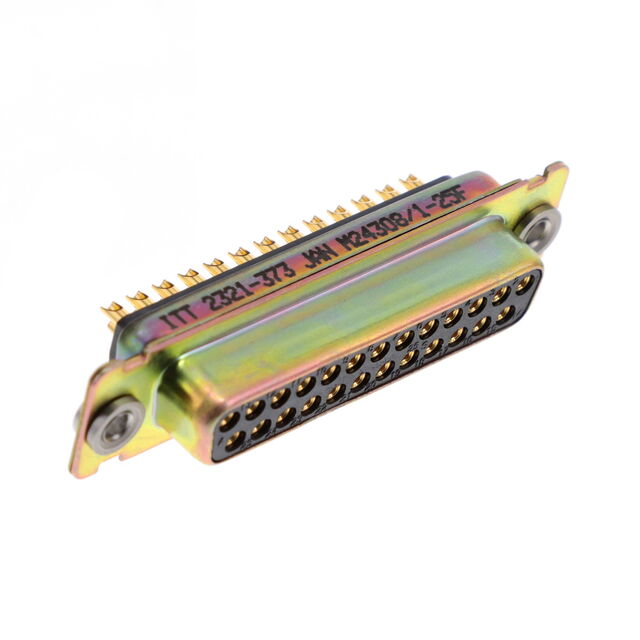

M24308/1-25F

Active

ITT Cannon, LLC

CONN D-SUB RCPT 25POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/1-25F

Active

ITT Cannon, LLC

CONN D-SUB RCPT 25POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/1-25F

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester
Flange Feature	Housing/Shell (Unthreaded)
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

M24308/1 Series

Part	Connector Type	Flange Feature	Contact Finish	Shell Material, Finish	Number of Positions	Shell Size, Connector Layout	Current Rating (Amps)	Number of Rows	Contact Type	Connector Style	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Material Flammability Rating	Shell Size, Connector Layout	Termination	Features	Mounting Type
ITT Cannon, LLC M24308/1-2Z	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Zinc	15	2	7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm
ITT Cannon, LLC M24308/1-1F	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Cadmium	9		7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm	DE E	1
ITT Cannon, LLC M24308/1-3F	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Cadmium			7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm	B DB	3	Copper Alloy	UL94 V-0
ITT Cannon, LLC M24308/1-4Z	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Zinc	37		7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm					4 (DC C)
ITT Cannon, LLC M24308/1-2F	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Cadmium	15	2	7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm
ITT Cannon, LLC M24308/1-25F	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Cadmium			7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm	B DB	3
ITT Cannon, LLC M24308/1-26F	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Cadmium	37		7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm					4 (DC C)
ITT Cannon, LLC M24308/1-27F	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Cadmium	50	5	7.5 A	3	Signal	D-Sub	Thermoplastic	-55 °C	125 °C	50 µin	1.27 µm						Solder	Shielded	Panel Mount Through Hole
ITT Cannon, LLC M24308/1-25Z	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Zinc			7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm	B DB	3
ITT Cannon, LLC M24308/1-26Z	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Steel Yellow Chromate Plated Zinc	37		7.5 A	2	Signal	D-Sub	Polyester	-55 °C	150 °C	50 µin	1.27 µm					4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.52
		1	$ 30.89
		10	$ 27.05
		10	$ 48.52
		25	$ 47.57
		25	$ 30.68
		25	$ 25.88
		50	$ 25.04
		50	$ 42.56
		100	$ 24.21
		100	$ 38.51
		250	$ 22.87
Newark	Each	100	$ 29.59
		250	$ 29.10

Description

General part information

M24308/1 Series

25 Position D-Sub Receptacle, Female Sockets Connector
