M24308/1-4Z
ActiveITT Cannon, LLC
CONN D-SUB SKT 37 POS SOLDER CUP ST PANEL MOUNT 37 TERMINAL 1 PORT
M24308/1-4Z
ActiveITT Cannon, LLC
CONN D-SUB SKT 37 POS SOLDER CUP ST PANEL MOUNT 37 TERMINAL 1 PORT
Description
General part information
M24308/1 Series

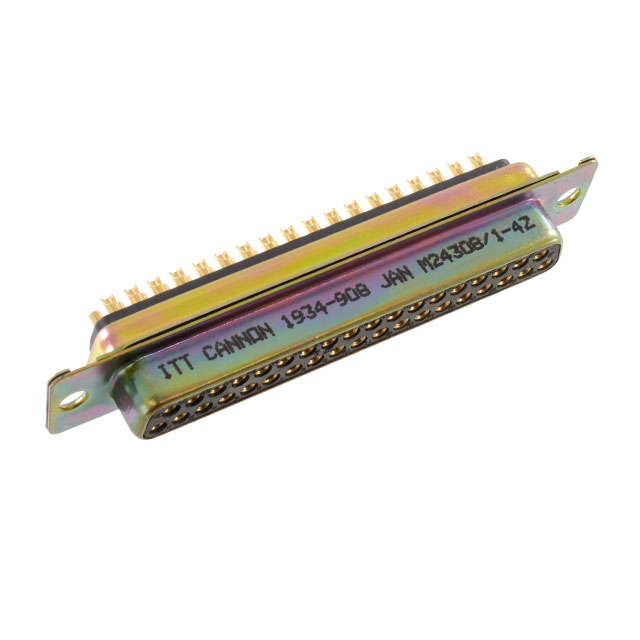

37 Position D-Sub Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/1-4Z |
|---|---|
| Connector Layout | DC, C |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Type | Signal |
| Current Rating | 7.5 A |
| Dielectric Material | Polyester |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Panel Mount |
| Number of Positions | 37 pos |
| Number of Rows | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Shell Size | 4 |
| Termination | Solder Cup |
