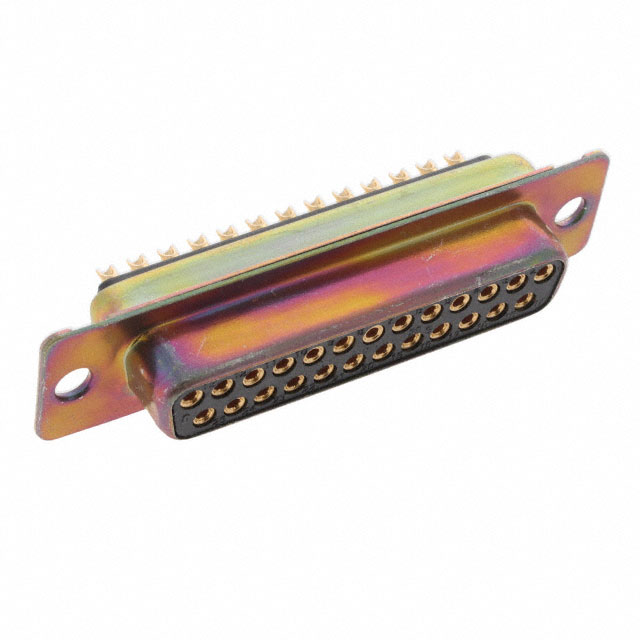

M24308/1-3F
ActiveITT Cannon, LLC
D SUB CONNECTOR, 25 CONTACTS, RECEPTACLE, SOLDER CUP, DB, MIL-DTL-24308 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
M24308/1-3F
ActiveITT Cannon, LLC
D SUB CONNECTOR, 25 CONTACTS, RECEPTACLE, SOLDER CUP, DB, MIL-DTL-24308 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/1-3F |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polyester |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Chromate Plated Cadmium, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
M24308/1 Series
| Part | Connector Type | Flange Feature | Contact Finish | Shell Material, Finish | Number of Positions | Shell Size, Connector Layout | Current Rating (Amps) | Number of Rows | Contact Type | Connector Style | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Material | Material Flammability Rating | Shell Size, Connector Layout | Termination | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Zinc | 15 | 2 | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | ||||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Cadmium | 9 | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | DE E | 1 | |||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Cadmium | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | B DB | 3 | Copper Alloy | UL94 V-0 | ||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Zinc | 37 | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | 4 (DC C) | ||||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Cadmium | 15 | 2 | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | ||||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Cadmium | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | B DB | 3 | ||||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Cadmium | 37 | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | 4 (DC C) | ||||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Cadmium | 50 | 5 | 7.5 A | 3 | Signal | D-Sub | Thermoplastic | -55 °C | 125 °C | 50 µin | 1.27 µm | Solder | Shielded | Panel Mount Through Hole | |||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Zinc | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | B DB | 3 | ||||||||
ITT Cannon, LLC | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Gold | Steel Yellow Chromate Plated Zinc | 37 | 7.5 A | 2 | Signal | D-Sub | Polyester | -55 °C | 150 °C | 50 µin | 1.27 µm | 4 (DC C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M24308/1 Series
25 Position D-Sub Receptacle, Female Sockets Connector
