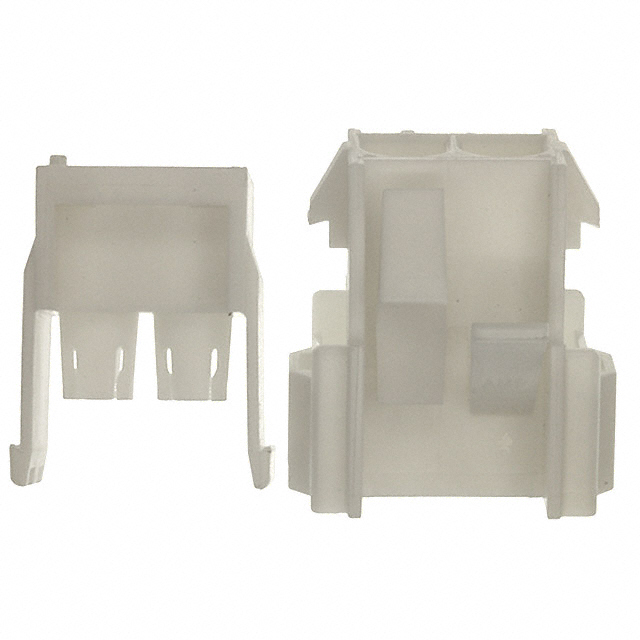

770024-1
ActiveTE Connectivity Raychem Cable Protection
02P UMNLII IN-LINE CAP HSG KIT
Deep-Dive with AI
Search across all available documentation for this part.
770024-1
ActiveTE Connectivity Raychem Cable Protection
02P UMNLII IN-LINE CAP HSG KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 770024-1 |
|---|---|
| Color | White |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.59 | |||
Description
General part information
Universal MATE-N-LOK Series
Pin & Socket Connectors 06P MICRO MNL ASSY R/A SMT LF
