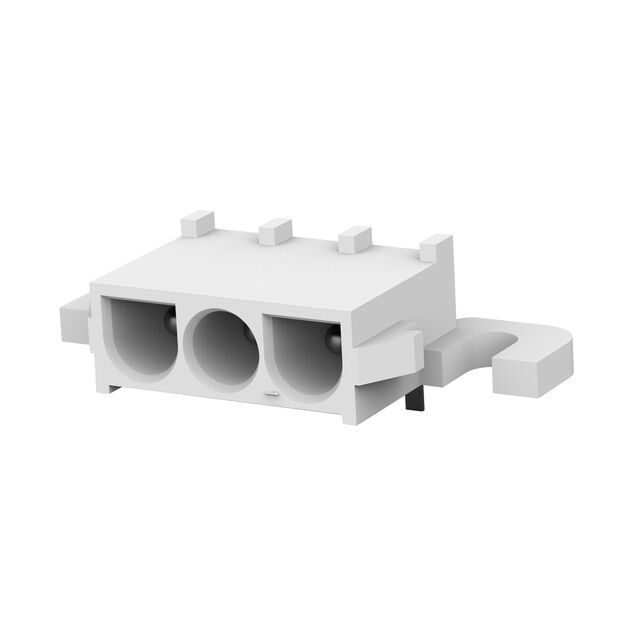

1586892-3

Active

TE Connectivity Raychem Cable Protection

03P UMNL HDR ASSY R/A, GW V0

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1586892-3

Active

TE Connectivity Raychem Cable Protection

03P UMNL HDR ASSY R/A, GW V0

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1586892-3

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Length - Post	4.06 mm
Contact Length - Post	0.16 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	12 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Insulation Color	Natural
Insulation Height	9.14 mm
Insulation Height	0.36 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

Universal MATE-N-LOK Series

Pin & Socket Connectors 06P MICRO MNL ASSY R/A SMT LF

...

Part	Contact Termination	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Contact Finish - Post	Contact Shape	Number of Rows	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Termination	Insulation Color	Contact Material	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Mounting Type	Voltage Rating	Current Rating (Amps)	Shrouding	Features	Applications	Type	Row Spacing - Mating	Row Spacing - Mating	Note	Color
TE Connectivity Raychem Cable Protection 350687-7	Crimp	Gold	14 AWG	20 AWG	0.76 Ám	30 Áin	Split Pin
TE Connectivity Raychem Cable Protection 1969811-1
TE Connectivity Raychem Cable Protection 1-2213752-1
TE Connectivity Raychem Cable Protection 794783-3								0.58 in	14.73 mm	Gold	Header	Tin	Circular	1	Board to Cable/Wire	-40 °C	105 ░C	Nylon Polyamide (PA)	Solder	Black	Phosphor Bronze	Female Socket	6.35 mm	0.25 in	UL94 V-0	Locking Ramp	30 Áin	0.76 Ám	4	3.94 mm	0.155 "	All	Through Hole
TE Connectivity Raychem Cable Protection 350547-1	Crimp	Tin	14 AWG	20 AWG			Pin
TE Connectivity Raychem Cable Protection 641966-3								0.55 in	13.97 mm	Gold	Header	Gold	Circular	1	Board to Cable/Wire	-40 °C	105 ░C	Nylon Polyamide (PA)	Solder	White	Phosphor Bronze	Male Pin	6.35 mm	0.25 in	UL94 V-0	Locking Ramp				3.94 mm	0.155 "	All	Through Hole	600 VAC	12 A	Shrouded - 4 Wall	Board Guide	General Purpose
TE Connectivity Raychem Cable Protection 926886-1	Crimp	Tin	17.5 AWG	24 AWG			Pin																																Stamped
TE Connectivity Raychem Cable Protection 1586892-3								0.36 in	9.14 mm		Header	Tin	Circular	1	Board to Cable/Wire	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	Solder	Natural	Phosphor Bronze	Male Pin	6.35 mm	0.25 in	UL94 V-0	Locking Ramp	150 Áin	3.81 Ám		4.06 mm	0.16 in	All	Through Hole Right Angle	600 VAC	12 A	Shrouded - 4 Wall	Mounting Flange
TE Connectivity Raychem Cable Protection 350834-1								0.55 in	13.97 mm		Header	Tin	Circular	3	Board to Cable/Wire			Nylon Polyamide (PA)	Solder	Natural	Phosphor Bronze	Female Socket	6.35 mm	0.25 in	UL94 V-0	Locking Ramp			6	5.46 mm	0.215 in	All	Through Hole							0.25 in	6.35 mm
TE Connectivity Raychem Cable Protection 770024-1	Crimp										Receptacle			1		-55 °C	105 ░C	Nylon Polyamide (PA)				Male or Female				Locking Ramp			2				Panel Mount Snap-In									Contacts Not Included	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.88
		10	$ 1.64
		25	$ 1.57
		50	$ 1.53
		100	$ 1.46
		280	$ 1.32
		560	$ 1.22
		1120	$ 1.04
		2520	$ 0.98

Description

General part information

Universal MATE-N-LOK Series

Pin & Socket Connectors 06P MICRO MNL ASSY R/A SMT LF
