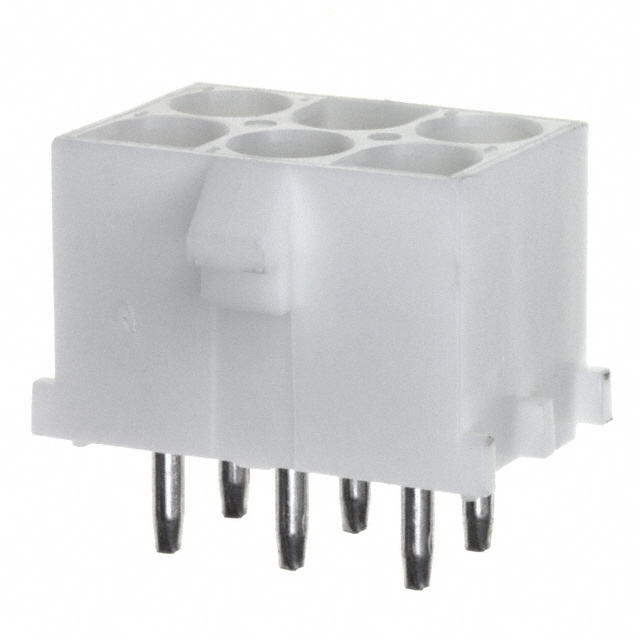

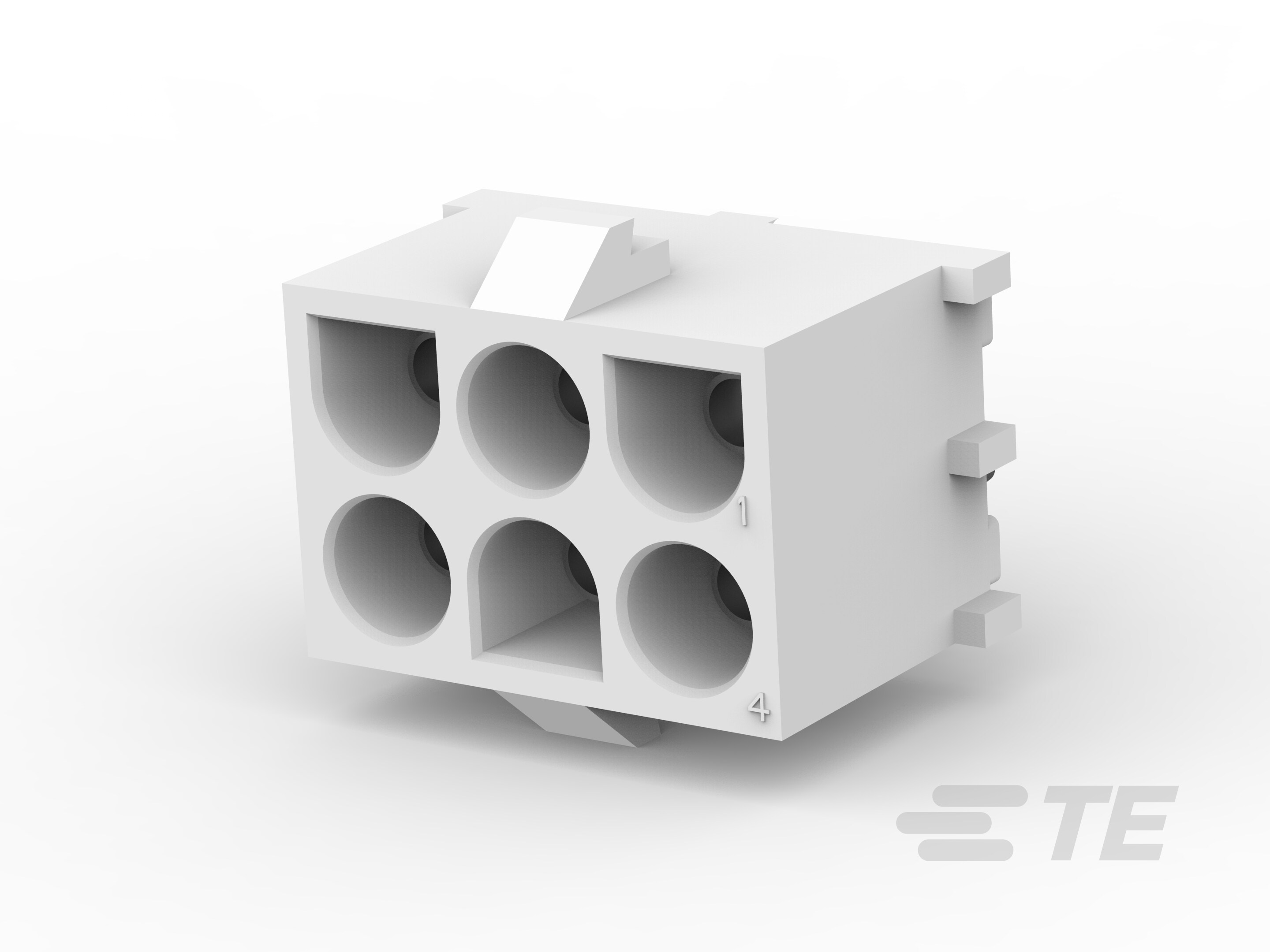

350834-1
ActiveTE Connectivity Raychem Cable Protection
CONN HDR 6POS 0.25 TIN PCB
Deep-Dive with AI
Search across all available documentation for this part.
350834-1
ActiveTE Connectivity Raychem Cable Protection
CONN HDR 6POS 0.25 TIN PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 350834-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.215 in |
| Contact Length - Post | 5.46 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.55 in |
| Insulation Height | 13.97 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch - Mating | 6.35 mm |
| Pitch - Mating | 0.25 in |
| Row Spacing - Mating | 0.25 in |
| Row Spacing - Mating | 6.35 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.82 | |
| 10 | $ 1.66 | |||
| 100 | $ 1.48 | |||
| 500 | $ 1.33 | |||
| 1000 | $ 1.19 | |||
| 5000 | $ 1.06 | |||
Description
General part information
Universal MATE-N-LOK Series
Pin & Socket Connectors 06P MICRO MNL ASSY R/A SMT LF
