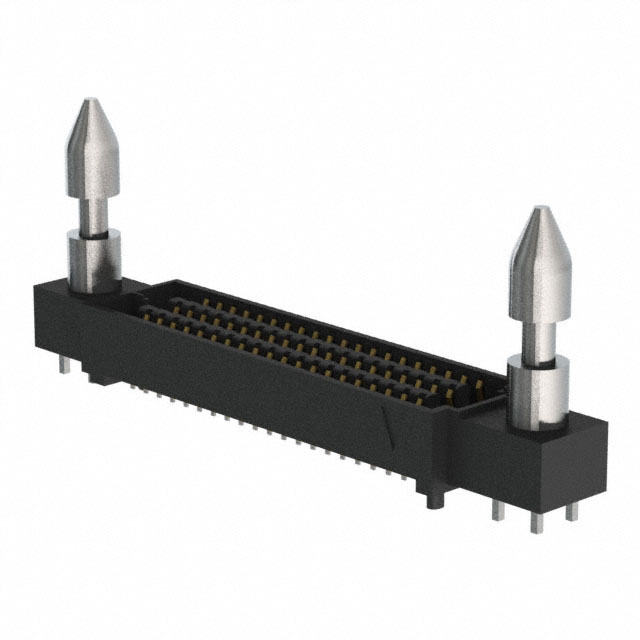

SEAF-20-05.0-L-06-2-A-LP-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HIGH DENSITY ARRAY, FEMALE, 1.27 MM, 6 ROWS, 120 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet +3

SEAF-20-05.0-L-06-2-A-LP-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HIGH DENSITY ARRAY, FEMALE, 1.27 MM, 6 ROWS, 120 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsDrawing EN Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-20-05.0-L-06-2-A-LP-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Pick and Place, Latches
Height Above Board	5.05 mm
Height Above Board	0.199 in
Mated Stacking Heights	12 mm, 14 mm, 16 mm, 7 mm, 18 mm, 11.5 mm, 8.5 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	6
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-20 Series

Part	Mated Stacking Heights	Mounting Type	Connector Type	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board	Height Above Board	Number of Positions	Contact Finish
Samtec Inc. SEAF-20-06.0-S-06-1-A-K-TR	8 mm 9 mm 9.5 mm 12.5 mm 13 mm 15 mm 17 mm 19 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.76 Ám	30 Áin	6	0.238 in	6.05 mm	120	Gold
Samtec Inc. SEAF-20-05.0-L-08-2-A-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	8	0.199 in	5.05 mm	160	Gold
Samtec Inc. SEAF-20-06.5-L-05-1-A-K-TR	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	5	0.258 "	6.55 mm	100	Gold
Samtec Inc. SEAF-20-01-L-06-1-RA-K-TR		Surface Mount Right Angle	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	6	0.411 in	10.45 mm	120	Gold
Samtec Inc. SEAF-20-05.0-L-06-2-A-LP-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Latches Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	6	0.199 in	5.05 mm	120	Gold
Samtec Inc. SEAF-20-05.0-L-04-2-A-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin		0.199 in	5.05 mm	80	Gold
Samtec Inc. SEAF-20-05.0-S-06-1-A-LP-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Latches Pick and Place	0.05 in	1.27 mm	0.76 Ám	30 Áin	6	0.199 in	5.05 mm	120	Gold
Samtec Inc. SEAF-20-01-L-06-2-RA-GP-TR		Surface Mount Right Angle	High Density Array Female	Board Guide Mating Flange	0.05 in	1.27 mm	0.25 Ám	10 Áin	6	0.411 in	10.45 mm	120	Gold
Samtec Inc. SEAF-20-01-L-10-2-RA-GP-TR		Surface Mount Right Angle	High Density Array Female	Board Guide Mating Flange	0.05 in	1.27 mm	0.25 Ám	10 Áin	10	0.611 in	15.53 mm		Gold
Samtec Inc. SEAF-20-01-S-08-1-RA-TR		Surface Mount Right Angle	High Density Array Female	Board Guide	0.05 in	1.27 mm	0.76 Ám	30 Áin	8	0.511 in	12.99 mm	160	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.50
		10	$ 12.91
		25	$ 12.42
		50	$ 11.51
	Tape & Reel (TR)	100	$ 10.06
		300	$ 9.18
Newark	Each	1	$ 16.57
		10	$ 15.03
		100	$ 12.52
		250	$ 11.05
		500	$ 10.76
		1000	$ 10.02

Description

General part information

SEAF-20 Series

120 Position Connector High Density Array, Female Surface Mount Gold

Documents

Technical documentation and resources

Drawing EN

Datasheet

SEAF Series Other Related Documents 03

Conn Array Rcpt 160POS SMD Gold / Fill Rows 3, 4, 7, 8 Only, Not Available As Standard.

SEAF-10-05.0-L-05-1-A-K-TR Datasheet 02

Datasheet
