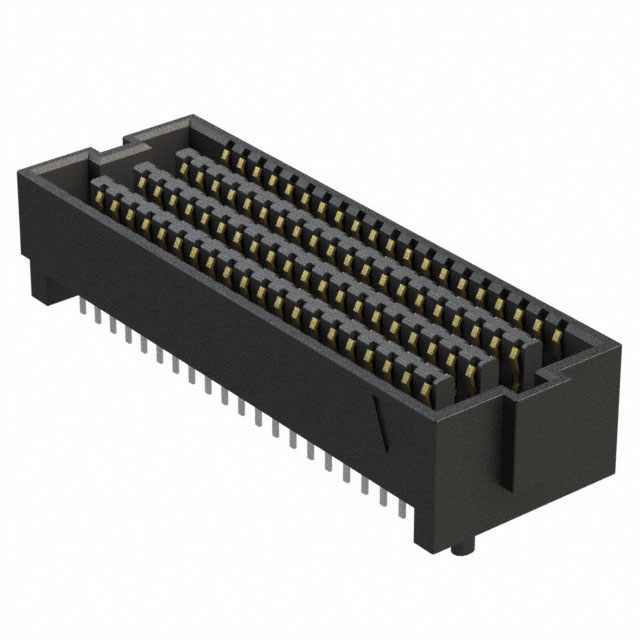

SEAF-20-05.0-L-08-2-A-K-TR - SEARAY SEAF Series

SEAF-20-05.0-L-08-2-A-K-TR

Active
Samtec Inc.

CONN HD ARRAY RCPT 160P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSEAF Series Other Related Documents 03Datasheet+2
SEAF-20-05.0-L-08-2-A-K-TR - SEARAY SEAF Series

SEAF-20-05.0-L-08-2-A-K-TR

Active
Samtec Inc.

CONN HD ARRAY RCPT 160P SMD GOLD

Deep-Dive with AI

DocumentsSEAF Series Other Related Documents 03Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSEAF-20-05.0-L-08-2-A-K-TR
Connector TypeHigh Density Array, Female
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place, Board Guide
Height Above Board5.05 mm
Height Above Board0.199 in
Mated Stacking Heights12 mm, 14 mm, 16 mm, 7 mm, 18 mm, 11.5 mm, 8.5 mm, 8 mm
Mounting TypeSurface Mount
Number of Positions160
Number of Rows8
Pitch [x]0.05 in
Pitch [x]1.27 mm

SEAF-20 Series

PartMated Stacking HeightsMounting TypeConnector TypeFeaturesPitch [x]Pitch [x]Contact Finish ThicknessContact Finish ThicknessNumber of RowsHeight Above BoardHeight Above BoardNumber of PositionsContact Finish
Samtec Inc.
SEAF-20-06.0-S-06-1-A-K-TR
8 mm
9 mm
9.5 mm
12.5 mm
13 mm
15 mm
17 mm
19 mm
Surface Mount
High Density Array
Female
Board Guide
Pick and Place
0.05 in
1.27 mm
0.76 Ám
30 Áin
6
0.238 in
6.05 mm
120
Gold
Samtec Inc.
SEAF-20-05.0-L-08-2-A-K-TR
7 mm
8 mm
8.5 mm
11.5 mm
12 mm
14 mm
16 mm
18 mm
Surface Mount
High Density Array
Female
Board Guide
Pick and Place
0.05 in
1.27 mm
0.25 Ám
10 Áin
8
0.199 in
5.05 mm
160
Gold
Samtec Inc.
SEAF-20-06.5-L-05-1-A-K-TR
8.5 mm
9.5 mm
10 mm
13 mm
13.5 mm
15.5 mm
17.5 mm
19.5 mm
Surface Mount
High Density Array
Female
Board Guide
Pick and Place
0.05 in
1.27 mm
0.25 Ám
10 Áin
5
0.258 "
6.55 mm
100
Gold
Samtec Inc.
SEAF-20-01-L-06-1-RA-K-TR
Surface Mount
Right Angle
High Density Array
Female
Board Guide
Pick and Place
0.05 in
1.27 mm
0.25 Ám
10 Áin
6
0.411 in
10.45 mm
120
Gold
Samtec Inc.
SEAF-20-05.0-L-06-2-A-LP-K-TR
7 mm
8 mm
8.5 mm
11.5 mm
12 mm
14 mm
16 mm
18 mm
Surface Mount
High Density Array
Female
Board Guide
Latches
Pick and Place
0.05 in
1.27 mm
0.25 Ám
10 Áin
6
0.199 in
5.05 mm
120
Gold
Samtec Inc.
SEAF-20-05.0-L-04-2-A-K-TR
7 mm
8 mm
8.5 mm
11.5 mm
12 mm
14 mm
16 mm
18 mm
Surface Mount
High Density Array
Female
Board Guide
Pick and Place
0.05 in
1.27 mm
0.25 Ám
10 Áin
0.199 in
5.05 mm
80
Gold
Samtec Inc.
SEAF-20-05.0-S-06-1-A-LP-K-TR
7 mm
8 mm
8.5 mm
11.5 mm
12 mm
14 mm
16 mm
18 mm
Surface Mount
High Density Array
Female
Board Guide
Latches
Pick and Place
0.05 in
1.27 mm
0.76 Ám
30 Áin
6
0.199 in
5.05 mm
120
Gold
Samtec Inc.
SEAF-20-01-L-06-2-RA-GP-TR
Surface Mount
Right Angle
High Density Array
Female
Board Guide
Mating Flange
0.05 in
1.27 mm
0.25 Ám
10 Áin
6
0.411 in
10.45 mm
120
Gold
Samtec Inc.
SEAF-20-01-L-10-2-RA-GP-TR
Surface Mount
Right Angle
High Density Array
Female
Board Guide
Mating Flange
0.05 in
1.27 mm
0.25 Ám
10 Áin
10
0.611 in
15.53 mm
Gold
Samtec Inc.
SEAF-20-01-S-08-1-RA-TR
Surface Mount
Right Angle
High Density Array
Female
Board Guide
0.05 in
1.27 mm
0.76 Ám
30 Áin
8
0.511 in
12.99 mm
160
Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 15.51
10$ 14.83
25$ 14.28
50$ 13.23
100$ 11.37
Tape & Reel (TR) 250$ 9.67
500$ 8.89

Description

General part information

SEAF-20 Series

160 Position Connector High Density Array, Female Surface Mount Gold
