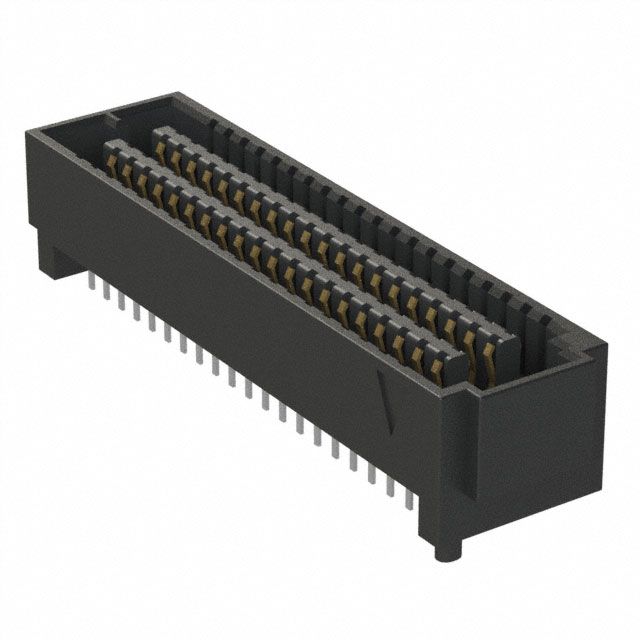

SEAF-20-06.5-L-05-1-A-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 100P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAF-20-06.5-L-05-1-A-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 100P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-20-06.5-L-05-1-A-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.258 "
Height Above Board	6.55 mm
Mated Stacking Heights	19.5 mm, 9.5 mm, 8.5 mm, 15.5 mm, 17.5 mm, 10 mm, 13 mm, 13.5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	5
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAF-20 Series

Part	Mated Stacking Heights	Mounting Type	Connector Type	Features	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Height Above Board	Height Above Board	Number of Positions	Contact Finish
Samtec Inc. SEAF-20-06.0-S-06-1-A-K-TR	8 mm 9 mm 9.5 mm 12.5 mm 13 mm 15 mm 17 mm 19 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.76 Ám	30 Áin	6	0.238 in	6.05 mm	120	Gold
Samtec Inc. SEAF-20-05.0-L-08-2-A-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	8	0.199 in	5.05 mm	160	Gold
Samtec Inc. SEAF-20-06.5-L-05-1-A-K-TR	8.5 mm 9.5 mm 10 mm 13 mm 13.5 mm 15.5 mm 17.5 mm 19.5 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	5	0.258 "	6.55 mm	100	Gold
Samtec Inc. SEAF-20-01-L-06-1-RA-K-TR		Surface Mount Right Angle	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	6	0.411 in	10.45 mm	120	Gold
Samtec Inc. SEAF-20-05.0-L-06-2-A-LP-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Latches Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin	6	0.199 in	5.05 mm	120	Gold
Samtec Inc. SEAF-20-05.0-L-04-2-A-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Pick and Place	0.05 in	1.27 mm	0.25 Ám	10 Áin		0.199 in	5.05 mm	80	Gold
Samtec Inc. SEAF-20-05.0-S-06-1-A-LP-K-TR	7 mm 8 mm 8.5 mm 11.5 mm 12 mm 14 mm 16 mm 18 mm	Surface Mount	High Density Array Female	Board Guide Latches Pick and Place	0.05 in	1.27 mm	0.76 Ám	30 Áin	6	0.199 in	5.05 mm	120	Gold
Samtec Inc. SEAF-20-01-L-06-2-RA-GP-TR		Surface Mount Right Angle	High Density Array Female	Board Guide Mating Flange	0.05 in	1.27 mm	0.25 Ám	10 Áin	6	0.411 in	10.45 mm	120	Gold
Samtec Inc. SEAF-20-01-L-10-2-RA-GP-TR		Surface Mount Right Angle	High Density Array Female	Board Guide Mating Flange	0.05 in	1.27 mm	0.25 Ám	10 Áin	10	0.611 in	15.53 mm		Gold
Samtec Inc. SEAF-20-01-S-08-1-RA-TR		Surface Mount Right Angle	High Density Array Female	Board Guide	0.05 in	1.27 mm	0.76 Ám	30 Áin	8	0.511 in	12.99 mm	160	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 9.09

Description

General part information

SEAF-20 Series

100 Position Connector High Density Array, Female Surface Mount Gold
