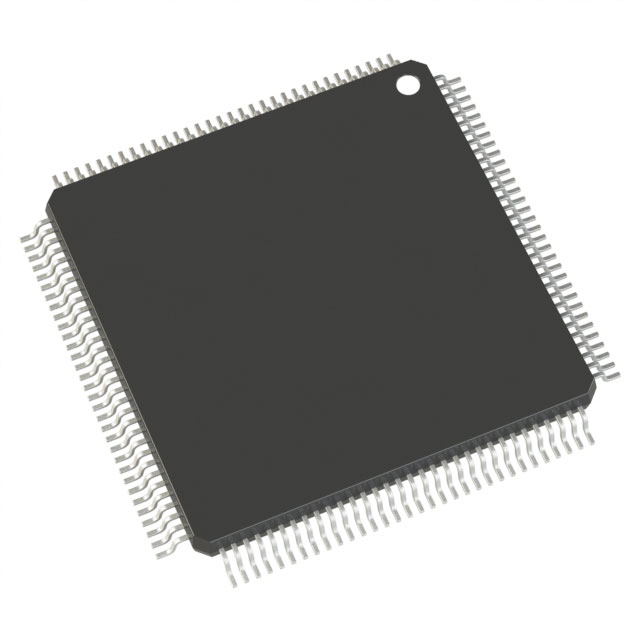

ATSAME54P19A-AUT-EFP

Active

Microchip Technology

ARM MCU, SAM 32 FAMILY SAM E5X SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 120 MHZ, 512 KB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

ATSAME54P19A-AUT-EFP

Active

Microchip Technology

ARM MCU, SAM 32 FAMILY SAM E5X SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 120 MHZ, 512 KB

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATSAME54P19A-AUT-EFP	ATSAME54 Series

Board Type	-	Evaluation Platform
Connectivity	UART/USART, EBI/EMI, USB, Ethernet, SPI, MMC/SD, LINbus, I2C, QSPI, CANbus, IrDA	UART/USART, EBI/EMI, USB, Ethernet, SPI, MMC/SD, LINbus, I2C, QSPI, CANbus, IrDA
Contents	-	Board(s)
Core Processor	ARM® Cortex®-M4F	ARM® Cortex®-M4F
Core Size	32-Bit Single-Core	32-Bit Single-Core, 32-Bit
Data Converters	D/A 2x12b, A/D 32x12b	A/D 28x12b, D/A 2x12b, A/D 32x12b
Interconnect System	-	Xplained Pro
Mounting Type	Surface Mount	Surface Mount, Fixed
Number of I/O	-	81
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal, External
Package / Case	128-TQFP	100-TQFP, 120-TFBGA, 128-TQFP
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S	Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S
Platform	-	SAM E54 Xplained Pro
Program Memory Size	512 KB	1 - 512 KB
Program Memory Type	FLASH	FLASH
RAM Size	192 K	192 - 256 K
Speed	120 MHz	100 - 120 MHz
Suggested Programming Environment	-	Atmel Studio
Supplier Device Package	-	100-TQFP (14x14), 120-TFBGA (8x8)
Type	-	MCU 32-Bit
Utilized IC / Part	-	ATSAME54
Voltage - Supply (Vcc/Vdd) [Max]	3.63 V	3.63 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V	1.71 V

ATSAME54 Series

ARM MCU, SAM 32 FAMILY SAM E5X SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 100 MHZ, 512 KB

Part	Program Memory Type	Peripherals	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of I/O	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Core Processor	Connectivity	Core Size	Data Converters	Package / Case	RAM Size	Oscillator Type	Program Memory Size	Speed
Microchip Technology ATSAME54N19A-AFT	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	125 °C	100-TQFP (14x14)	81	3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 28x12b, D/A 2x12b	100-TQFP	192 K	Internal	512 KB	120 MHz
Microchip Technology ATSAME54N20A-AFT-SL3	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	125 °C	100-TQFP (14x14)	81	3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit	A/D 28x12b, D/A 2x12b	100-TQFP	256 K	External, Internal	1 MB	100 MHz
Microchip Technology ATSAME54P19A-CTUT	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	85 °C	120-TFBGA (8x8)		3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 32x12b, D/A 2x12b	120-TFBGA	192 K	Internal	512 KB	120 MHz
Microchip Technology ATSAME54P20A-AUT	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	85 °C			3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 32x12b, D/A 2x12b	128-TQFP	256 K	Internal	1 MB	120 MHz
Microchip Technology ATSAME54N20A-AU-EFP	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	85 °C	100-TQFP (14x14)	81	3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 28x12b, D/A 2x12b	100-TQFP	256 K	Internal	1 MB	120 MHz
Microchip Technology ATSAME54P19A-AUT-EFP	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	85 °C			3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 32x12b, D/A 2x12b	128-TQFP	192 K	Internal	512 KB	120 MHz
Microchip Technology ATSAME54P20A-AU	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	85 °C			3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 32x12b, D/A 2x12b	128-TQFP	256 K	Internal	1 MB	120 MHz
Microchip Technology ATSAME54P19A-AU	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	85 °C			3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 32x12b, D/A 2x12b	128-TQFP	192 K	Internal	512 KB	120 MHz
Microchip Technology ATSAME54N20A-AF	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	125 °C	100-TQFP (14x14)	81	3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 28x12b, D/A 2x12b	100-TQFP	256 K	Internal	1 MB	120 MHz
Microchip Technology ATSAME54P20A-AFT	FLASH	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT	-40 °C	125 °C			3.63 V	1.71 V	Surface Mount	ARM® Cortex®-M4F	CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB	32-Bit Single-Core	A/D 32x12b, D/A 2x12b	128-TQFP	256 K	Internal	1 MB	120 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.21
	Digi-Reel®	1	$ 8.21
	Tape & Reel (TR)	1000	$ 6.81
Newark	Each (Supplied on Full Reel)	100	$ 6.81

Description

General part information

ATSAME54 Series

**The SAM E54 high performance micro-controller series features a 32-bit ARM® Cortex®-M4 processor with Floating Point Unit (FPU), running up to 120 MHz ,up to 1 MB Dual Panel Flash with ECC, and up to 256 KB of SRAM with ECC .It also adds a 10/100 Ethernet MAC and 2 CAN-FD ports targeted for industrial automation ,automotive applications and general purpose applications requiring Wired connectivity.**

**Series offers excellent features with class leading power performance and integrated hardware security.**

**Key features**
