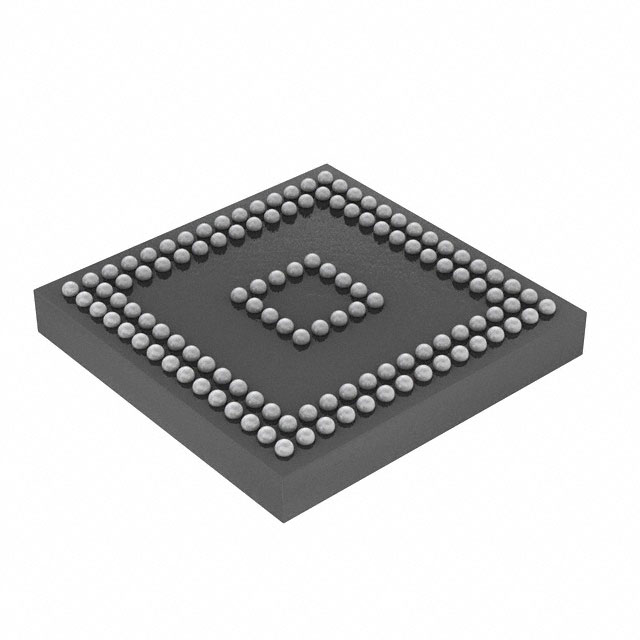

ATSAME54P19A-CTUT
ActiveMicrochip Technology
ARM MCU, SAM 32 FAMILY SAM E5X SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 120 MHZ, 512 KB
Deep-Dive with AI
Search across all available documentation for this part.
ATSAME54P19A-CTUT
ActiveMicrochip Technology
ARM MCU, SAM 32 FAMILY SAM E5X SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 120 MHZ, 512 KB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ATSAME54P19A-CTUT | ATSAME54 Series |
|---|---|---|
| Board Type | - | Evaluation Platform |
| Connectivity | UART/USART, EBI/EMI, USB, Ethernet, SPI, MMC/SD, LINbus, I2C, QSPI, CANbus, IrDA | UART/USART, EBI/EMI, USB, Ethernet, SPI, MMC/SD, LINbus, I2C, QSPI, CANbus, IrDA |
| Contents | - | Board(s) |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core, 32-Bit |
| Data Converters | D/A 2x12b, A/D 32x12b | A/D 28x12b, D/A 2x12b, A/D 32x12b |
| Interconnect System | - | Xplained Pro |
| Mounting Type | Surface Mount | Surface Mount, Fixed |
| Number of I/O | - | 81 |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal, External |
| Package / Case | 120-TFBGA | 100-TQFP, 120-TFBGA, 128-TQFP |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S | Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S |
| Platform | - | SAM E54 Xplained Pro |
| Program Memory Size | 512 KB | 1 - 512 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 192 K | 192 - 256 K |
| Speed | 120 MHz | 100 - 120 MHz |
| Suggested Programming Environment | - | Atmel Studio |
| Supplier Device Package | 120-TFBGA (8x8) | 100-TQFP (14x14), 120-TFBGA (8x8) |
| Type | - | MCU 32-Bit |
| Utilized IC / Part | - | ATSAME54 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.63 V | 3.63 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.71 V | 1.71 V |
ATSAME54 Series
ARM MCU, SAM 32 FAMILY SAM E5X SERIES MICROCONTROLLERS, ARM CORTEX-M4F, 32 BIT, 100 MHZ, 512 KB
| Part | Program Memory Type | Peripherals | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Number of I/O | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Mounting Type | Core Processor | Connectivity | Core Size | Data Converters | Package / Case | RAM Size | Oscillator Type | Program Memory Size | Speed | Contents | Platform | Suggested Programming Environment | Interconnect System | Utilized IC / Part | Board Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ATSAME54N19A-AFT | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 125 °C | 100-TQFP (14x14) | 81 | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 28x12b, D/A 2x12b | 100-TQFP | 192 K | Internal | 512 KB | 120 MHz | |||||||
Microchip Technology ATSAME54N20A-AFT-SL3 | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 125 °C | 100-TQFP (14x14) | 81 | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit | A/D 28x12b, D/A 2x12b | 100-TQFP | 256 K | External, Internal | 1 MB | 100 MHz | |||||||
Microchip Technology ATSAME54P19A-CTUT | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 85 °C | 120-TFBGA (8x8) | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 32x12b, D/A 2x12b | 120-TFBGA | 192 K | Internal | 512 KB | 120 MHz | ||||||||
Microchip Technology ATSAME54P20A-AUT | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 85 °C | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 32x12b, D/A 2x12b | 128-TQFP | 256 K | Internal | 1 MB | 120 MHz | |||||||||
Microchip Technology ATSAME54N20A-AU-EFP | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 85 °C | 100-TQFP (14x14) | 81 | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 28x12b, D/A 2x12b | 100-TQFP | 256 K | Internal | 1 MB | 120 MHz | |||||||
Microchip Technology ATSAME54P19A-AUT-EFP | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 85 °C | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 32x12b, D/A 2x12b | 128-TQFP | 192 K | Internal | 512 KB | 120 MHz | |||||||||
Microchip Technology ATSAME54P20A-AU | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 85 °C | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 32x12b, D/A 2x12b | 128-TQFP | 256 K | Internal | 1 MB | 120 MHz | |||||||||
Microchip Technology ATSAME54P19A-AU | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 85 °C | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 32x12b, D/A 2x12b | 128-TQFP | 192 K | Internal | 512 KB | 120 MHz | |||||||||
Microchip Technology ATSAME54N20A-AF | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 125 °C | 100-TQFP (14x14) | 81 | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 28x12b, D/A 2x12b | 100-TQFP | 256 K | Internal | 1 MB | 120 MHz | |||||||
Microchip Technology ATSAME54P20A-AFT | FLASH | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | -40 °C | 125 °C | 3.63 V | 1.71 V | Surface Mount | ARM® Cortex®-M4F | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | 32-Bit Single-Core | A/D 32x12b, D/A 2x12b | 128-TQFP | 256 K | Internal | 1 MB | 120 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.51 | |
| 25 | $ 7.80 | |||
| 100 | $ 7.07 | |||
| Digi-Reel® | 1 | $ 8.51 | ||
| 25 | $ 7.80 | |||
| 100 | $ 7.07 | |||
| Tape & Reel (TR) | 3000 | $ 7.07 | ||
| Microchip Direct | T/R | 1 | $ 8.51 | |
| 25 | $ 7.80 | |||
| 100 | $ 7.07 | |||
| 1000 | $ 6.49 | |||
| 5000 | $ 6.18 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 7.29 | |
| 3500 | $ 7.29 | |||
Description
General part information
ATSAME54 Series
**The SAM E54 high performance micro-controller series features a 32-bit ARM® Cortex®-M4 processor with Floating Point Unit (FPU), running up to 120 MHz ,up to 1 MB Dual Panel Flash with ECC, and up to 256 KB of SRAM with ECC .It also adds a 10/100 Ethernet MAC and 2 CAN-FD ports targeted for industrial automation ,automotive applications and general purpose applications requiring Wired connectivity.**
**Series offers excellent features with class leading power performance and integrated hardware security.**
**Key features**
