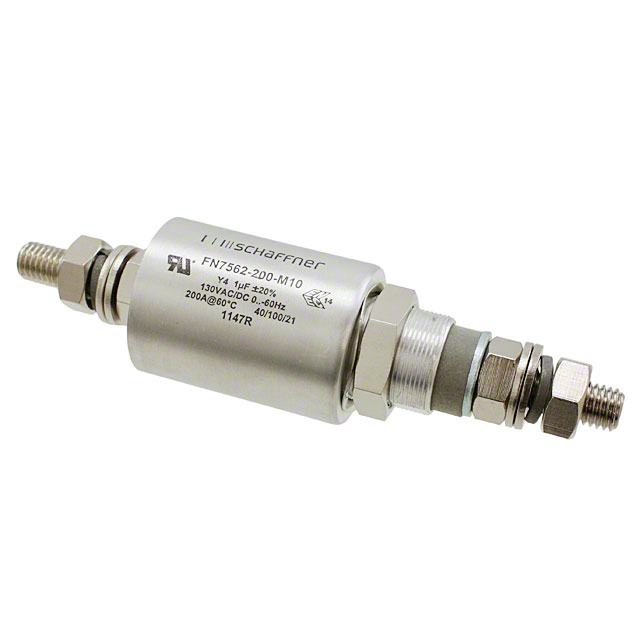

FN7562-200-M10
ActiveTE Connectivity Raychem Cable Protection
CAP FEEDTHRU 1UF 20% 650V AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN7562-200-M10
ActiveTE Connectivity Raychem Cable Protection
CAP FEEDTHRU 1UF 20% 650V AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN7562-200-M10 |
|---|---|
| Capacitance | 1 µF |
| Current | 200 A |
| DC Resistance (DCR) (Max) | 0.18 mOhm |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial - Threaded Terminals |
| Ratings | Y4 |
| Size / Dimension [diameter] | 1.496 in |
| Size / Dimension [diameter] | 38 mm |
| Size / Dimension [x] | 147 mm |
| Size / Dimension [x] | 5.787 in |
| Thread Size | M24x1 |
| Tolerance | 20 % |
| Voltage - Rated | 650 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 128.80 | |
| 10 | $ 120.81 | |||
| 40 | $ 115.48 | |||
| 80 | $ 111.93 | |||
Description
General part information
FN7562 Series
1 µF Feed Through Capacitor 650V 200 A 0.18mOhm (Typ) Axial - Threaded Terminals
