SDR-BN

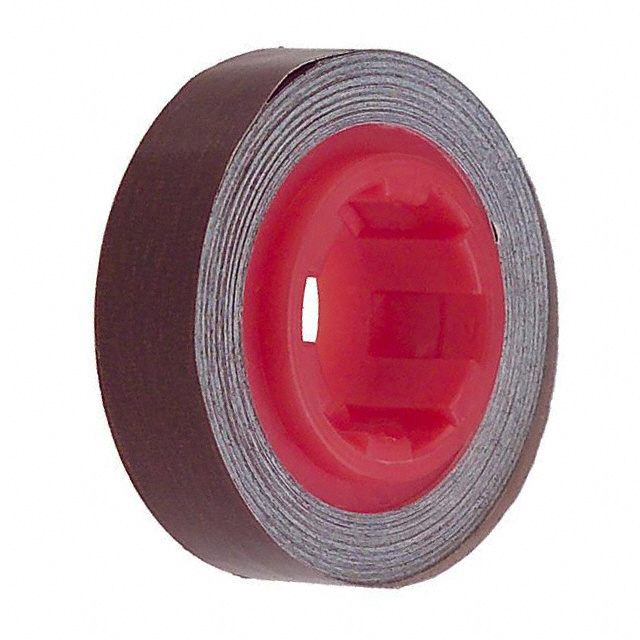

ActiveWIRE MARKER, SCOTCHCODE™ TAPE, COLOUR CODED, 5.46MM X 2.44M, PET (POLYESTER), BROWN
Deep-Dive with AI
Search across all available documentation for this part.
SDR-BN
ActiveWIRE MARKER, SCOTCHCODE™ TAPE, COLOUR CODED, 5.46MM X 2.44M, PET (POLYESTER), BROWN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDR-BN |
|---|---|
| Cable Diameter [diameter] | Cut to Desired Diameter |
| Color | Brown |
| Legend | Blank |
| Material | Polyester |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Size [x] | 0.22 in |
| Size [x] | 5.5 mm |
| Size [y] | 2.4 m |
| Size [y] | 96 in |
| Type | Wire Marker, Tape |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SDR Series
The SDR series ScotchCode™ Wire Marker Tape Refill Rolls are pre-printed with 6 numbers for every inch and is ideal for phase identification. This tape is also ideal for identification of terminal blocks/strips, wire in panel boards or a piece of switchgear. This thin and conformable tape meets ASTM D-1000 standard test methods, making it great for industrial electrical applications. It is compatible with the 3M STD ScotchCode tape dispenser that provides easy and ideal usage.
