SDR-40-49
Active3M (TC)

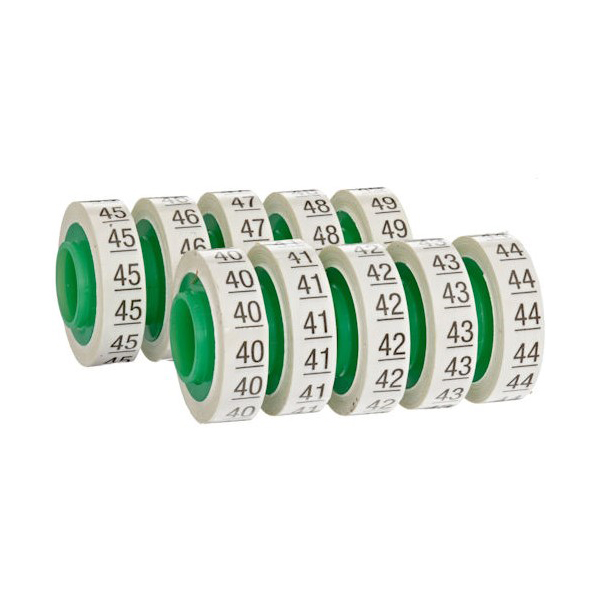

3M SCOTCHCODE WIRE MARKER TAPE REFILL ROLL SDR 40-49
Deep-Dive with AI
Search across all available documentation for this part.
SDR-40-49
Active3M (TC)
3M SCOTCHCODE WIRE MARKER TAPE REFILL ROLL SDR 40-49
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDR-40-49 |
|---|---|
| Cable Diameter [diameter] | Cut to Desired Diameter |
| Color | White |
| Legend [Max] | 49 |
| Legend [Min] | 40 |
| Material | Polyester |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Size [x] | 0.22 in |
| Size [x] | 5.5 mm |
| Size [y] | 2.4 m |
| Size [y] | 96 in |
| Type | Wire Marker, Tape |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SDR Series
Wire Marker, Tape 0.22" W x 96.00" L (5.5mm x 2.4m) White Polyester
Documents
Technical documentation and resources
