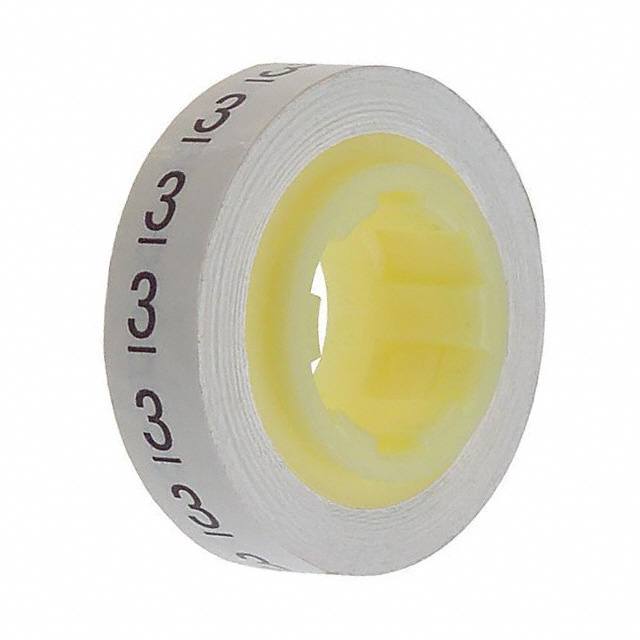

SDR-3
ActiveWIRE MARKER, NUMBERED TAPE, 1 ROLL, PRE PRINTED, 3, 5.46MM X 2.44M, PET (POLYESTER), BLACK, WHITE
Deep-Dive with AI
Search across all available documentation for this part.
SDR-3
ActiveWIRE MARKER, NUMBERED TAPE, 1 ROLL, PRE PRINTED, 3, 5.46MM X 2.44M, PET (POLYESTER), BLACK, WHITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDR-3 |
|---|---|
| Cable Diameter [diameter] | Cut to Desired Diameter |
| Color | White |
| Legend | 3 |
| Material | Polyester |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -40 °C |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Size [x] | 0.22 in |
| Size [x] | 5.5 mm |
| Size [y] | 2.4 m |
| Size [y] | 96 in |
| Type | Wire Marker, Tape |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SDR Series
The SDR series ScotchCode™ Wire Marker Tape Refill Rolls are pre-printed with 6 numbers for every inch and is ideal for phase identification. This tape is also ideal for identification of terminal blocks/strips, wire in panel boards or a piece of switchgear. This thin and conformable tape meets ASTM D-1000 standard test methods, making it great for industrial electrical applications. It is compatible with the 3M STD ScotchCode tape dispenser that provides easy and ideal usage.
Documents
Technical documentation and resources
