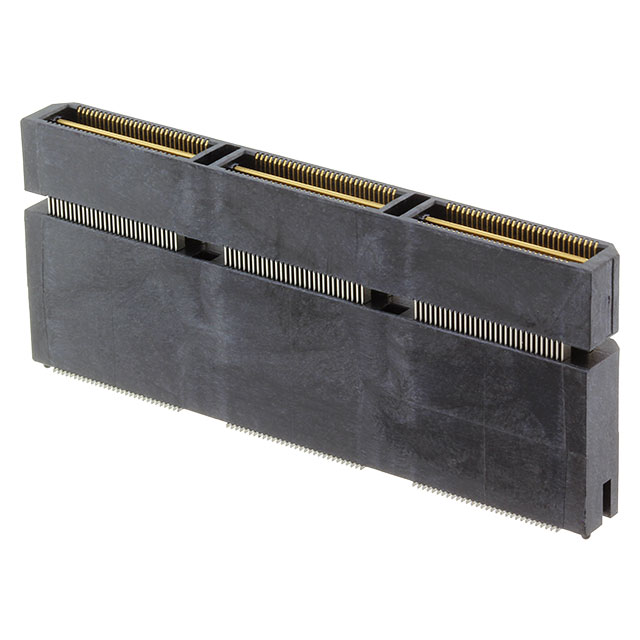

QTH-090-07-C-D-A

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 180 POS 0.5MM SOLDER ST TOP ENTRY SMD TRAY

Deep-Dive with AI

Search across all available documentation for this part.

QTH-090-07-C-D-A

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 180 POS 0.5MM SOLDER ST TOP ENTRY SMD TRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTH-090-07-C-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Height Above Board	0.954 in
Height Above Board	24.23 mm
Mated Stacking Heights	25 mm
Mounting Type	Surface Mount
Number of Positions	180
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QTH-090 Series

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Connector Type	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features
Samtec Inc. QTH-090-04-H-D-A-TR	0.5 mm	0.02 in	16 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.6 in	15.24 mm	180	2	0.76 Ám	30 Áin
Samtec Inc. QTH-090-07-C-D-A	0.5 mm	0.02 in	25 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.954 in	24.23 mm	180	2	1.27 µm	50 µin
Samtec Inc. QTH-090-04-L-D-A	0.5 mm	0.02 in	16 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.6 in	15.24 mm	180	2	0.25 Ám	10 Áin
Samtec Inc. QTH-090-05-C-D-A	0.5 mm	0.02 in	19 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.718 in	18.24 mm	180	2	1.27 µm	50 µin
Samtec Inc. QTH-090-07-L-D-A	0.5 mm	0.02 in	25 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.954 in	24.23 mm	180	2	0.25 Ám	10 Áin
Samtec Inc. QTH-090-05-L-D	0.5 mm	0.02 in	19 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.718 in	18.24 mm	180	2	0.25 Ám	10 Áin	Ground Bus (Plane)
Samtec Inc. QTH-090-02-L-D-LC-K-TR	0.5 mm	0.02 in	8 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.286 "	7.26 mm	180	2	0.25 Ám	10 Áin	Board Lock Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-090-01-L-D-K-TR	0.5 mm	0.02 in	5 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.16 in	4.06 mm	180	2	0.25 Ám	10 Áin	Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-090-01-C-D-A-K	0.5 mm	0.02 in	5 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.16 in	4.06 mm	180	2	1.27 µm	50 µin	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-090-02-L-D-A-K	0.5 mm	0.02 in	8 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.286 "	7.26 mm	180	2	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane) Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 38.47

Description

General part information

QTH-090 Series

180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

No documents available
