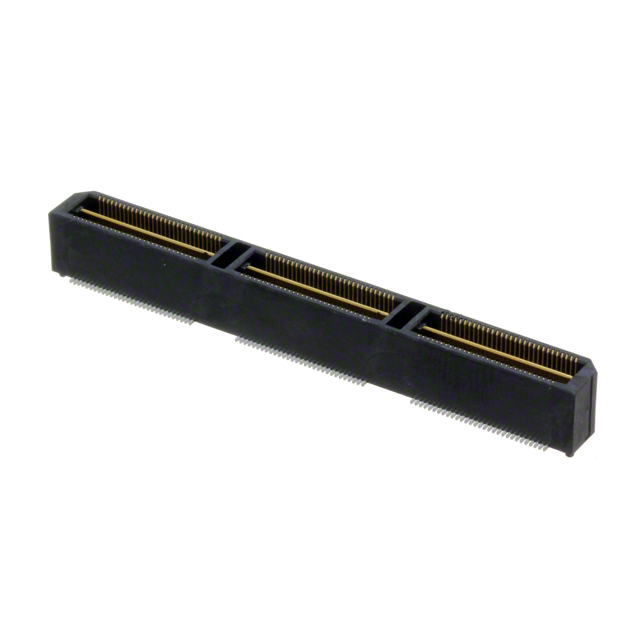

QTH-090-02-L-D-A-K
ActiveSamtec Inc.
CONN HDR 180POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
QTH-090-02-L-D-A-K
ActiveSamtec Inc.
CONN HDR 180POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QTH-090-02-L-D-A-K |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide, Ground Bus (Plane), Pick and Place |
| Height Above Board | 7.26 mm |
| Height Above Board | 0.286 " |
| Mated Stacking Heights | 8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 180 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 42 | $ 7.96 | |
| 126 | $ 7.20 | |||
| 252 | $ 6.43 | |||
| 504 | $ 6.39 | |||
Description
General part information
QTH-090 Series
180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
