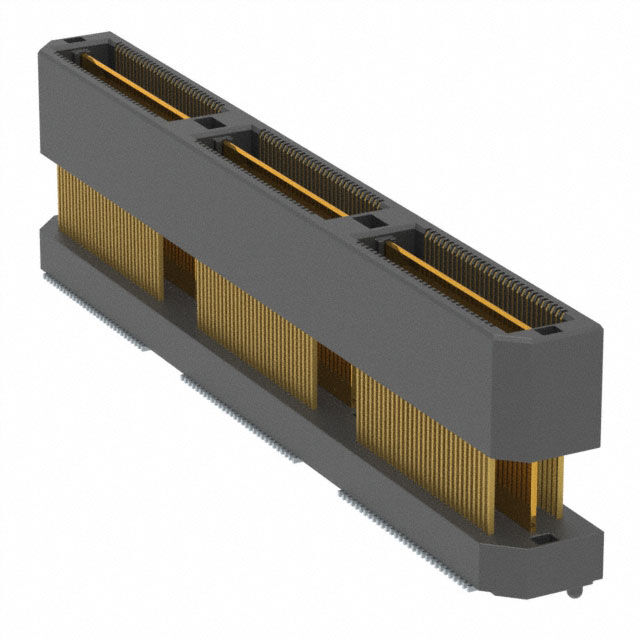

QTH-090-04-L-D-A

Active

Samtec Inc.

CONN HDR 180POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair, Right-Angle QSH Series Other Related Documents 03 +2

QTH-090-04-L-D-A

Active

Samtec Inc.

CONN HDR 180POS SMD GOLD

Deep-Dive with AI

Documents0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair, Right-Angle QSH Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTH-090-04-L-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	0.6 in
Height Above Board	15.24 mm
Mated Stacking Heights	16 mm
Mounting Type	Surface Mount
Number of Positions	180
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QTH-090 Series

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Connector Type	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Features
Samtec Inc. QTH-090-04-H-D-A-TR	0.5 mm	0.02 in	16 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.6 in	15.24 mm	180	2	0.76 Ám	30 Áin
Samtec Inc. QTH-090-07-C-D-A	0.5 mm	0.02 in	25 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.954 in	24.23 mm	180	2	1.27 µm	50 µin
Samtec Inc. QTH-090-04-L-D-A	0.5 mm	0.02 in	16 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.6 in	15.24 mm	180	2	0.25 Ám	10 Áin
Samtec Inc. QTH-090-05-C-D-A	0.5 mm	0.02 in	19 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.718 in	18.24 mm	180	2	1.27 µm	50 µin
Samtec Inc. QTH-090-07-L-D-A	0.5 mm	0.02 in	25 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.954 in	24.23 mm	180	2	0.25 Ám	10 Áin
Samtec Inc. QTH-090-05-L-D	0.5 mm	0.02 in	19 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.718 in	18.24 mm	180	2	0.25 Ám	10 Áin	Ground Bus (Plane)
Samtec Inc. QTH-090-02-L-D-LC-K-TR	0.5 mm	0.02 in	8 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.286 "	7.26 mm	180	2	0.25 Ám	10 Áin	Board Lock Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-090-01-L-D-K-TR	0.5 mm	0.02 in	5 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.16 in	4.06 mm	180	2	0.25 Ám	10 Áin	Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-090-01-C-D-A-K	0.5 mm	0.02 in	5 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.16 in	4.06 mm	180	2	1.27 µm	50 µin	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QTH-090-02-L-D-A-K	0.5 mm	0.02 in	8 mm	Header Outer Shroud Contacts	Surface Mount	Gold	0.286 "	7.26 mm	180	2	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane) Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 22.77
		10	$ 22.10
		25	$ 21.53
		50	$ 20.50
		100	$ 17.48
		250	$ 14.89
		500	$ 12.69

Description

General part information

QTH-090 Series

180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

0.50 mm Q Pairs® High-Speed Ground Plane Terminal Strip, Differential Pair, Right-Angle

QSH Series Other Related Documents 03

Datasheet

QTH-020-01-F-D-DP-A Datasheet 02
