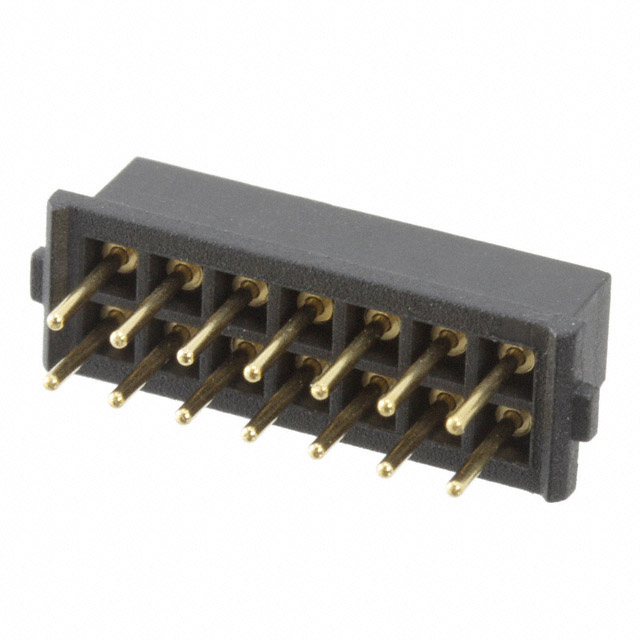

M80-8501445

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 14, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-0110001 +5

M80-8501445

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 14, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M80-0110001 +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8501445

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	5.14 mm
Insulation Height [z]	0.202 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mated Stacking Heights	7.85 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-850 Series

Part	Contact Material	Connector Type	Number of Positions	Material Flammability Rating	Mated Stacking Heights	Termination	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Mounting Type	Number of Rows	Insulation Color	Fastening Type	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Shape	Style	Number of Positions
Harwin Inc. M80-8501445	Beryllium Copper	Receptacle	14	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8502642	Beryllium Copper	Receptacle	26	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501245	Beryllium Copper	Receptacle	12	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8500845	Beryllium Copper	Receptacle	8	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501042	Beryllium Copper	Receptacle	10	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501845	Beryllium Copper	Receptacle	18	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501245R	Beryllium Copper	Receptacle	12	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8500642	Beryllium Copper	Receptacle	6	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501045	Beryllium Copper	Receptacle	10	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501642	Beryllium Copper	Receptacle		UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.85
		14	$ 7.96
		112	$ 7.12
		504	$ 5.96
		1008	$ 5.27
Newark	Each	1	$ 8.27
		10	$ 7.40
		25	$ 6.54
		50	$ 6.17
		100	$ 5.80
		250	$ 5.44

Description

General part information

M80-850 Series

14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

M80-0110001

M80, M83 Series Spec Sheet

Datasheet

M80-001

M80-8501445

Deep-Dive with AI

M80-8501445

Deep-Dive with AI

Technical Specifications

M80-850 Series

Pricing

Description

M80-850 Series

Documents

Datasheet

M80-0110001

M80, M83 Series Spec Sheet

M80-001

Technical Data Sheet EN

Manufacturer Catalogue EN

3D Product Image EN

M80-850 Series
