M80-8502642

Active

Harwin Inc.

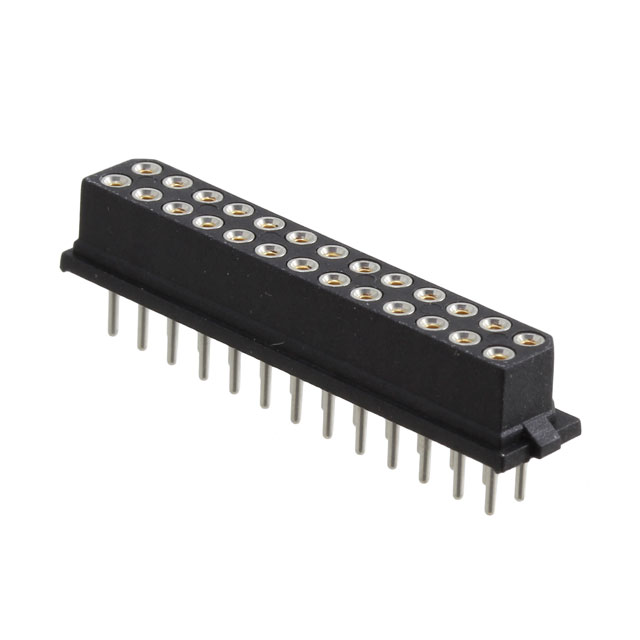

2MM 2MM DOUBLE ROW TIN -55℃~+125℃ 800V 26P STRAIGHT 5.14MM PLUGIN,P=2MM FEMALE HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +5

M80-8502642

Active

Harwin Inc.

2MM 2MM DOUBLE ROW TIN -55℃~+125℃ 800V 26P STRAIGHT 5.14MM PLUGIN,P=2MM FEMALE HEADERS ROHS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Manufacturer Catalogue EN +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8502642

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	157.5 Áin
Contact Finish Thickness - Post	4 Ám
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	5.14 mm
Insulation Height [z]	0.202 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mated Stacking Heights	7.85 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-850 Series

Part	Contact Material	Connector Type	Number of Positions	Material Flammability Rating	Mated Stacking Heights	Termination	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Mounting Type	Number of Rows	Insulation Color	Fastening Type	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Shape	Style	Number of Positions
Harwin Inc. M80-8501445	Beryllium Copper	Receptacle	14	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8502642	Beryllium Copper	Receptacle	26	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501245	Beryllium Copper	Receptacle	12	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8500845	Beryllium Copper	Receptacle	8	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501042	Beryllium Copper	Receptacle	10	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501845	Beryllium Copper	Receptacle	18	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501245R	Beryllium Copper	Receptacle	12	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8500642	Beryllium Copper	Receptacle	6	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501045	Beryllium Copper	Receptacle	10	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501642	Beryllium Copper	Receptacle		UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.36
		16	$ 11.84
		104	$ 10.32
		504	$ 8.80
		1000	$ 8.08
LCSC	Piece	1	$ 17.96
		200	$ 7.17
		496	$ 6.93
		1000	$ 6.81
Newark	Each	1	$ 12.54
		10	$ 11.17
		25	$ 9.81
		50	$ 9.31
		100	$ 8.81
		250	$ 8.31

Description

General part information

M80-850 Series

26 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

M80-0110001

M80-001

Datasheet

M80, M83 Series Spec Sheet

Datasheet

M80-8502642

Deep-Dive with AI

M80-8502642

Deep-Dive with AI

Technical Specifications

M80-850 Series

Pricing

Description

M80-850 Series

Documents

Technical Data Sheet EN

Manufacturer Catalogue EN

3D Product Image EN

M80-0110001

M80-001

Datasheet

M80, M83 Series Spec Sheet

M80-850 Series
