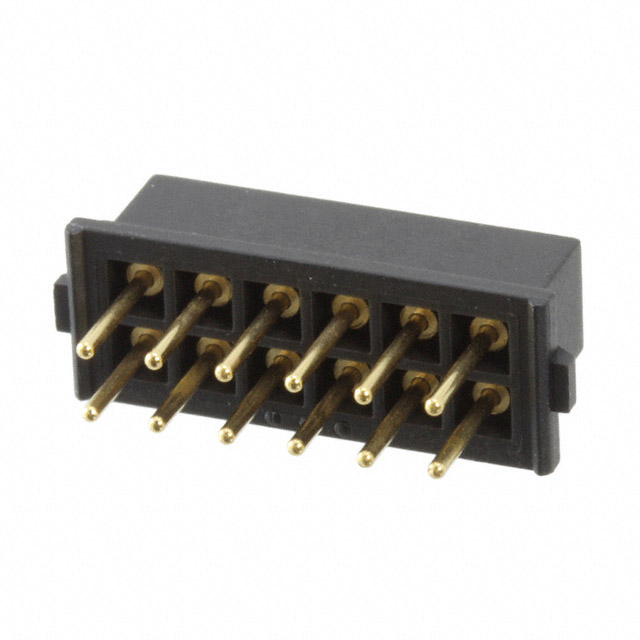

M80-8501245

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 12, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +4

M80-8501245

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 12, 2 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8501245

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	5.14 mm
Insulation Height [z]	0.202 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mated Stacking Heights	7.85 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-850 Series

Part	Contact Material	Connector Type	Number of Positions	Material Flammability Rating	Mated Stacking Heights	Termination	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Mounting Type	Number of Rows	Insulation Color	Fastening Type	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Shape	Style	Number of Positions
Harwin Inc. M80-8501445	Beryllium Copper	Receptacle	14	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8502642	Beryllium Copper	Receptacle	26	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501245	Beryllium Copper	Receptacle	12	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8500845	Beryllium Copper	Receptacle	8	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501042	Beryllium Copper	Receptacle	10	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501845	Beryllium Copper	Receptacle	18	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501245R	Beryllium Copper	Receptacle	12	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8500642	Beryllium Copper	Receptacle	6	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable
Harwin Inc. M80-8501045	Beryllium Copper	Receptacle	10	UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	10 çin	0.25 çm	Gold	0.118 in	3 mm	Gold	Circular	Board to Board Cable
Harwin Inc. M80-8501642	Beryllium Copper	Receptacle		UL94 V-0	7.23 mm 7.85 mm	Solder	5.14 mm	0.202 in	0.079 in	2 mm	12 µin	0.3 µm	All	-55 °C	125 °C	Female Socket	800 V	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Through Hole	2	Black	Locking Ramp	Automotive General Purpose Military	157.5 Áin	4 Ám	Gold	0.118 in	3 mm	Tin	Circular	Board to Board Cable	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.14
		10	$ 6.25
		100	$ 4.86
		500	$ 4.25
Newark	Each	1	$ 5.96
		10	$ 5.31
		25	$ 4.66
		50	$ 4.52
		100	$ 4.39
		250	$ 4.25

Description

General part information

M80-850 Series

12 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
