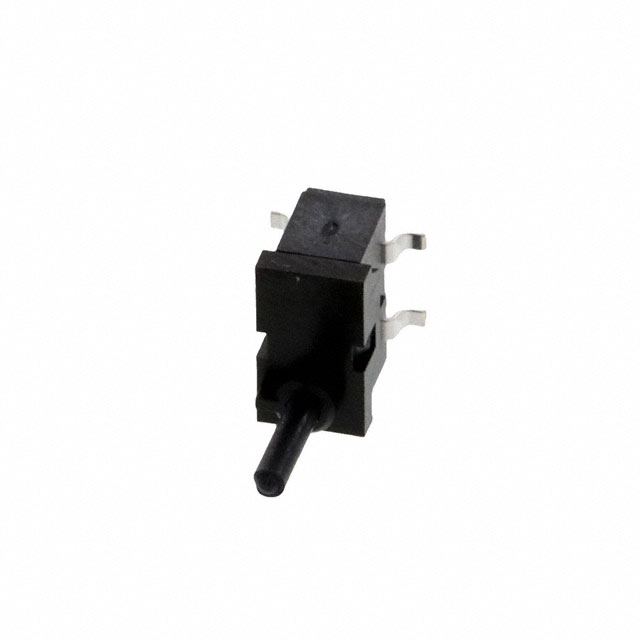

JJLV0UG1070NOPPRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.005A 5V
Deep-Dive with AI
Search across all available documentation for this part.
JJLV0UG1070NOPPRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.005A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JJLV0UG1070NOPPRTR |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 5 mA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 35 gf |
| Operating Position | 0.392 " |
| Operating Position | 9.95 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pretravel | 0.75 mm |
| Pretravel | 0.029 in |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.79 | |||
| 100 | $ 0.69 | |||
| Tape & Reel (TR) | 400 | $ 0.61 | ||
| 800 | $ 0.57 | |||
| 1200 | $ 0.55 | |||
| 2000 | $ 0.52 | |||
| 2800 | $ 0.50 | |||
| 4000 | $ 0.49 | |||
| 10000 | $ 0.44 | |||
| 20000 | $ 0.41 | |||
Description
General part information
JJLV0 Series
Switch SPST-NO Surface Mount
Documents
Technical documentation and resources
No documents available
