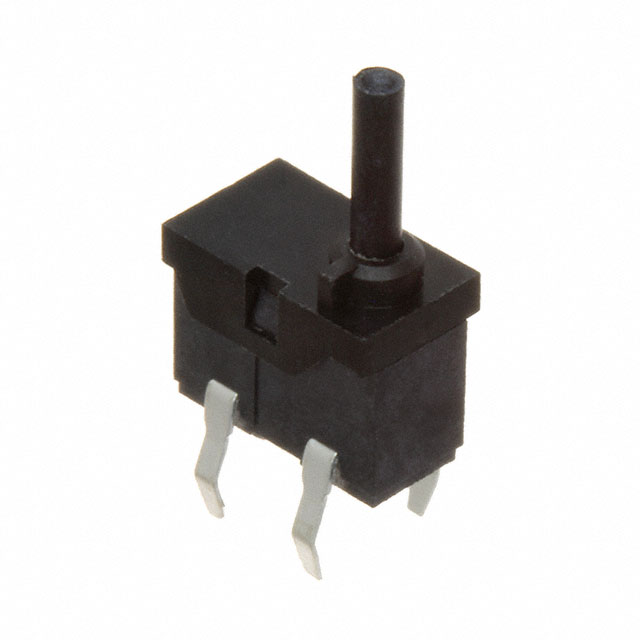

JJLV0UT1070NOPPRTB
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.005A 5V
Deep-Dive with AI
Search across all available documentation for this part.
JJLV0UT1070NOPPRTB
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECT SPST-NO 0.005A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JJLV0UT1070NOPPRTB |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 5 mA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 35 gf |
| Operating Position | 0.392 " |
| Operating Position | 9.95 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pretravel | 0.75 mm |
| Pretravel | 0.029 in |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.53 | |
| 10 | $ 0.51 | |||
| 70 | $ 0.46 | |||
| 140 | $ 0.43 | |||
| 280 | $ 0.39 | |||
| 560 | $ 0.36 | |||
| 1050 | $ 0.35 | |||
Description
General part information
JJLV0 Series
Switch SPST-NO Through Hole
Documents
Technical documentation and resources
No documents available
