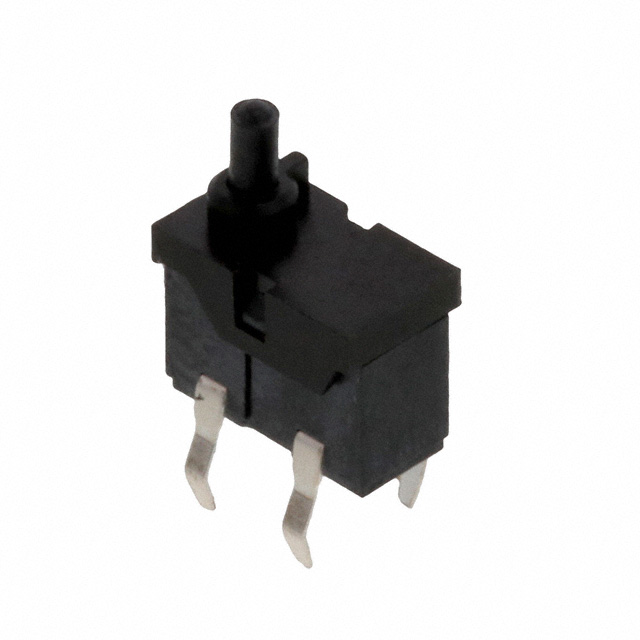

JJLV0UT840NOPPRTB

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECT SPST-NO 0.005A 5V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH DETECT SPST-NO 0.005A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Actuator Type	Termination Style	Current Rating (Amps)	Switch Function	Electrical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Voltage Rating - DC	Circuit	Operating Position	Operating Position
TE Connectivity Raychem Cable Protection JJLV0UT840NOPPRTB	0.75 mm	0.029 in	Angled Toggle (Detector)	PC Pin	5 mA	Off-Mom	50000 Cycles	Through Hole	-20 C	70 °C	35 gf	5 V	SPST-NO
TE Connectivity Raychem Cable Protection JJLV0UG840NOPPRTR	0.75 mm	0.029 in	Angled Toggle (Detector)	Gull Wing	5 mA	Off-Mom	50000 Cycles	Surface Mount	-20 C	70 °C	35 gf	5 V	SPST-NO
TE Connectivity Raychem Cable Protection JJLV0UT1070NOPPRTB	0.75 mm	0.029 in	Angled Toggle (Detector)	PC Pin	5 mA	Off-Mom	50000 Cycles	Through Hole	-20 C	70 °C	35 gf	5 V	SPST-NO	0.392 "	9.95 mm
TE Connectivity Raychem Cable Protection JJLV0UG1070NOPPRTR	0.75 mm	0.029 in	Angled Toggle (Detector)	Gull Wing	5 mA	Off-Mom	50000 Cycles	Surface Mount	-20 C	70 °C	35 gf	5 V	SPST-NO	0.392 "	9.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Through Hole

Technical documentation and resources

No documents available
