P50E-034S-EA

Active

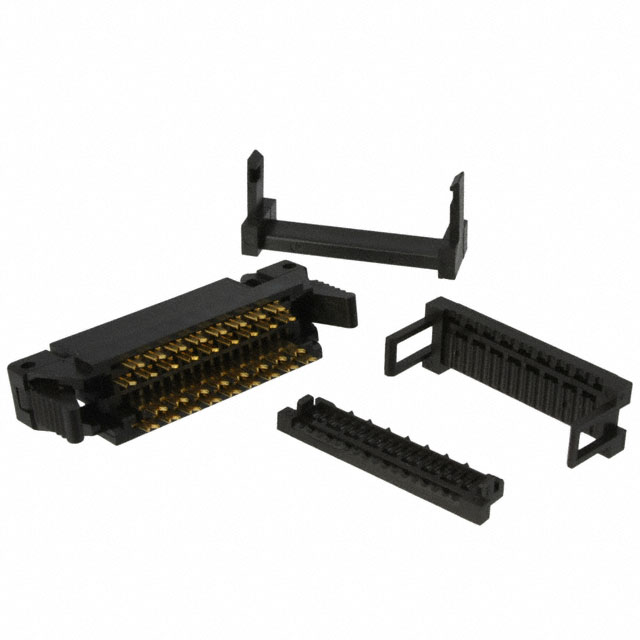

CONN SOCKET 34POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Mating Guide Datasheet

P50E-034S-EA

Active

CONN SOCKET 34POS IDC 28AWG GOLD

Deep-Dive with AI

DocumentsInterconnect Mating Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

P50E Series

34 Position Rectangular Socket Connector IDC Gold 28 AWG

Documents

Technical documentation and resources

Interconnect Mating Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P50E-034S-EA	P50E Series

Cable Termination	IDC	IDC
Color	Black	Black
Connector Type	Socket	Socket, Plug
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish - Post	-	Tin Alloy, Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	10 Áin
Contact Finish Thickness	-	0.25 Ám
Contact Finish Thickness - Mating	-	10 çin
Contact Finish Thickness - Mating	-	0.25 çm
Contact Finish Thickness - Post	-	Flash
Contact Length - Post	-	0.118 in
Contact Length - Post	-	3 mm
Contact Material	-	Copper Alloy
Contact Type	Outer Shroud Contact	Outer Shroud Contact, Center Strip Contact
Current Rating (Amps)	-	0.5 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks, Latch Holder
Features	Closed End	Closed End, Retention Clips
Insulation Color	-	Black
Insulation Height	-	7 mm
Insulation Height	-	0.276 - 0.421 in
Insulation Height	-	10.7 mm
Insulation Material	-	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole, Right Angle, Through Hole
Number of Positions	34	20 - 100
Number of Positions Loaded	-	All
Number of Rows	2	2
Operating Temperature	-	85 °C
Operating Temperature	-	-55 °C
Pitch - Mating	-	0.05 in
Pitch - Mating	-	1.27 mm
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Shrouding	-	Shrouded - 4 Wall
Style	-	Board to Board, Cable
Termination	-	Solder
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable
