P50E-040P1-S1-EA

Active

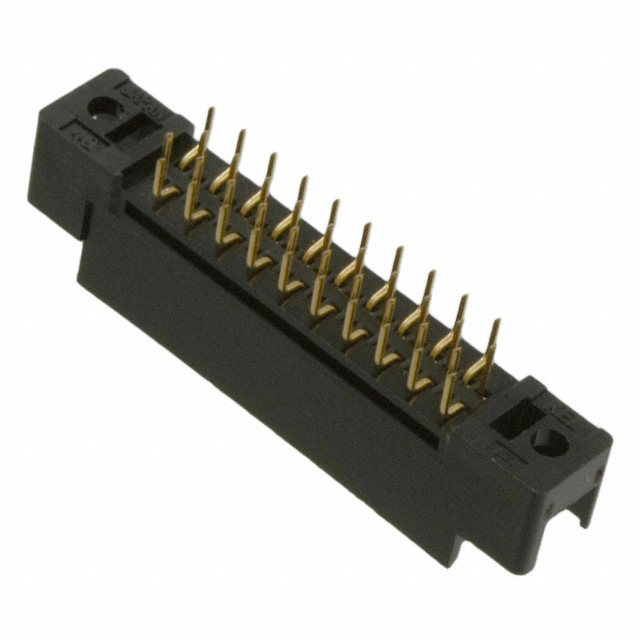

PIN HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT, P50E SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Mating Guide Datasheet

P50E-040P1-S1-EA

Active

PIN HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT, P50E SERIES

Deep-Dive with AI

DocumentsInterconnect Mating Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.46
		10	$ 6.75
		25	$ 6.37
		50	$ 6.22
		204	$ 5.91
		408	$ 5.28
		612	$ 4.97
		1020	$ 4.35
Newark	Each	100	$ 6.04
		250	$ 5.32
		500	$ 5.16
		1000	$ 4.39

Description

General part information

P50E Series

The P50E series 0.05-inch through-hole straight and right-angle board-mount Plug with copper alloy contacts and black glass-filled nylon insulation.

Documents

Technical documentation and resources

Interconnect Mating Guide

Datasheet

Specification	P50E-040P1-S1-EA	P50E Series

Cable Termination	-	IDC
Color	-	Black
Connector Type	Plug	Socket, Plug
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Tin Alloy, Gold
Contact Finish Thickness	-	Flash
Contact Finish Thickness	-	10 Áin
Contact Finish Thickness	-	0.25 Ám
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Center Strip Contact	Outer Shroud Contact, Center Strip Contact
Current Rating (Amps)	0.5 A	0.5 A
Fastening Type	Latch Holder	Latch Lock/Eject Hooks, Latch Holder
Features	-	Closed End, Retention Clips
Insulation Color	Black	Black
Insulation Height	10.7 mm	10.7 mm
Insulation Height	-	7 mm
Insulation Height [z]	0.421 in	0.276 - 0.421 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Free Hanging (In-Line), Through Hole, Right Angle, Through Hole
Number of Positions	40	20 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch	-	0.05 in
Pitch	-	1.27 mm
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Wire Gauge	-	28 AWG
Wire Type	-	Ribbon Cable

Part

Number of Rows

Contact Finish Thickness

Color

Contact Finish

Pitch [x]

Number of Positions

Fastening Type

Features

Cable Termination

Connector Type

Wire Gauge

Contact Type

Mounting Type

Wire Type

Contact Length - Post

Insulation Height [z]

Contact Finish Thickness - Mating

Termination

Operating Temperature [Max]

Operating Temperature [Min]

Current Rating (Amps)

Style

Shrouding

Insulation Material

Insulation Color

Pitch - Mating

Contact Finish - Mating

Contact Finish - Post

Material Flammability Rating

Contact Material

Number of Positions Loaded

Contact Finish Thickness - Post

Insulation Height

Contact Finish Thickness

P50E-030S-EA

Flash

Black

Gold

0.05 in

1.27 mm

Latch Lock/Eject Hooks

Closed End

IDC

Socket

28 AWG

Outer Shroud Contact

Free Hanging (In-Line)

Ribbon Cable

P50E-034P1-SR1-TG

Latch Holder

Plug

Center Strip Contact

Through Hole, Right Angle

0.118 in

3 mm

7 mm

0.276 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

Tin Alloy

UL94 V-0

Copper Alloy

All

P50E-068P1-SR1-EA

Latch Holder

Plug

Center Strip Contact

Through Hole, Right Angle

0.118 in

3 mm

7 mm

0.276 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

UL94 V-0

Copper Alloy

All

Flash

P50E-080P1-RR1-EA

Latch Holder

Retention Clips

Plug

Center Strip Contact

Through Hole, Right Angle

0.118 in

3 mm

7 mm

0.276 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

UL94 V-0

Copper Alloy

All

Flash

P50E-040P1-S1-EA

Latch Holder

Plug

Center Strip Contact

Through Hole

0.118 in

3 mm

0.421 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

UL94 V-0

Copper Alloy

All

Flash

10.7 mm

P50E-050P1-SR1-EA

Latch Holder

Plug

Center Strip Contact

Through Hole, Right Angle

0.118 in

3 mm

7 mm

0.276 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

UL94 V-0

Copper Alloy

All

Flash

P50E-034S-EA

Flash

Black

Gold

0.05 in

1.27 mm

Latch Lock/Eject Hooks

Closed End

IDC

Socket

28 AWG

Outer Shroud Contact

Free Hanging (In-Line)

Ribbon Cable

P50E-052P1-SR1-EA

Latch Holder

Plug

Center Strip Contact

Through Hole, Right Angle

0.118 in

3 mm

7 mm

0.276 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

UL94 V-0

Copper Alloy

All

Flash

P50E-040P1-RR1-TG

Latch Holder

Retention Clips

Plug

Center Strip Contact

Through Hole, Right Angle

0.118 in

3 mm

7 mm

0.276 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

Tin Alloy

UL94 V-0

Copper Alloy

All

P50E-060P1-S1-EA

Latch Holder

Plug

Center Strip Contact

Through Hole

0.118 in

3 mm

0.421 in

10 çin

0.25 çm

Solder

85 °C

-55 °C

0.5 A

Board to Board, Cable

Shrouded - 4 Wall

Glass Filled, Nylon, Polyamide (PA)

Black

0.05 in

1.27 mm

Gold

UL94 V-0

Copper Alloy

All

Flash

10.7 mm

Part	Number of Rows	Contact Finish Thickness	Color	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Fastening Type	Features	Cable Termination	Connector Type	Wire Gauge	Contact Type	Mounting Type	Wire Type	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Style	Shrouding	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Post	Insulation Height
3M P50E-030S-EA	2	Flash	Black	Gold	0.05 in	1.27 mm	30	Latch Lock/Eject Hooks	Closed End	IDC	Socket	28 AWG	Outer Shroud Contact	Free Hanging (In-Line)	Ribbon Cable
3M P50E-034P1-SR1-TG	2						34	Latch Holder			Plug		Center Strip Contact	Through Hole, Right Angle		0.118 in	3 mm	7 mm	0.276 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Tin Alloy	UL94 V-0	Copper Alloy	All
3M P50E-068P1-SR1-EA	2						68	Latch Holder			Plug		Center Strip Contact	Through Hole, Right Angle		0.118 in	3 mm	7 mm	0.276 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Gold	UL94 V-0	Copper Alloy	All	Flash
3M P50E-080P1-RR1-EA	2						80	Latch Holder	Retention Clips		Plug		Center Strip Contact	Through Hole, Right Angle		0.118 in	3 mm	7 mm	0.276 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Gold	UL94 V-0	Copper Alloy	All	Flash
3M P50E-040P1-S1-EA	2						40	Latch Holder			Plug		Center Strip Contact	Through Hole		0.118 in	3 mm		0.421 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Gold	UL94 V-0	Copper Alloy	All	Flash	10.7 mm
3M P50E-050P1-SR1-EA	2						50	Latch Holder			Plug		Center Strip Contact	Through Hole, Right Angle		0.118 in	3 mm	7 mm	0.276 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Gold	UL94 V-0	Copper Alloy	All	Flash
3M P50E-034S-EA	2	Flash	Black	Gold	0.05 in	1.27 mm	34	Latch Lock/Eject Hooks	Closed End	IDC	Socket	28 AWG	Outer Shroud Contact	Free Hanging (In-Line)	Ribbon Cable
3M P50E-052P1-SR1-EA	2						52	Latch Holder			Plug		Center Strip Contact	Through Hole, Right Angle		0.118 in	3 mm	7 mm	0.276 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Gold	UL94 V-0	Copper Alloy	All	Flash
3M P50E-040P1-RR1-TG	2						40	Latch Holder	Retention Clips		Plug		Center Strip Contact	Through Hole, Right Angle		0.118 in	3 mm	7 mm	0.276 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Tin Alloy	UL94 V-0	Copper Alloy	All
3M P50E-060P1-S1-EA	2						60	Latch Holder			Plug		Center Strip Contact	Through Hole		0.118 in	3 mm		0.421 in	10 çin	0.25 çm	Solder	85 °C	-55 °C	0.5 A	Board to Board, Cable	Shrouded - 4 Wall	Glass Filled, Nylon, Polyamide (PA)	Black	0.05 in	1.27 mm	Gold	Gold	UL94 V-0	Copper Alloy	All	Flash	10.7 mm
