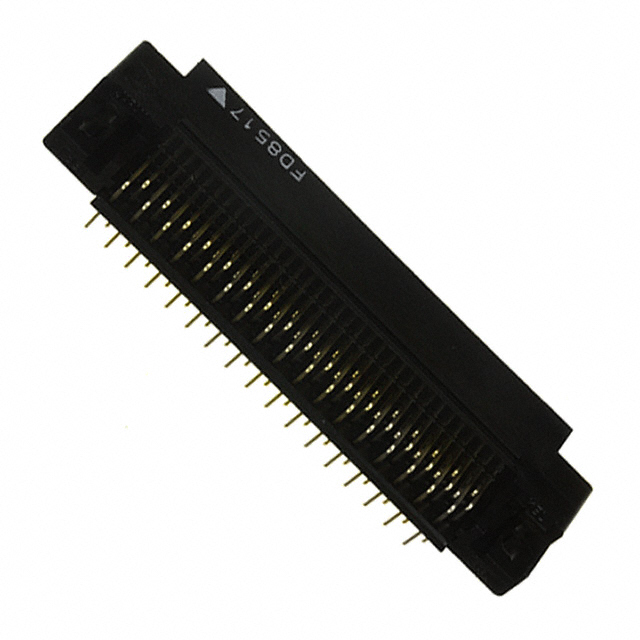

I/O CONNECTOR, 68 CONTACTS, PLUG, WIRE TO BOARD, THROUGH HOLE, P50E SERIES, PCB MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Mating Guide +1

P50E-068P1-SR1-EA

Active

I/O CONNECTOR, 68 CONTACTS, PLUG, WIRE TO BOARD, THROUGH HOLE, P50E SERIES, PCB MOUNT

Deep-Dive with AI

DocumentsDatasheet Interconnect Mating Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.09
		10	$ 9.98
		25	$ 9.41
		50	$ 9.16
		200	$ 8.92
		400	$ 7.96
		600	$ 7.48
		1000	$ 6.61
Newark	Each	100	$ 9.56
		250	$ 8.54
		500	$ 8.06
		1000	$ 7.05

Description

General part information

P50E Series

Connector Header Through Hole, Right Angle 68 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Mating Guide

Interconnect Catalog

Datasheet

Specification	P50E-068P1-SR1-EA	P50E Series

Cable Termination	-	IDC
Color	-	Black
Connector Type	Plug	Socket, Plug
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Tin Alloy, Gold
Contact Finish Thickness	-	Flash
Contact Finish Thickness	-	10 Áin
Contact Finish Thickness	-	0.25 Ám
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Center Strip Contact	Outer Shroud Contact, Center Strip Contact
Current Rating (Amps)	0.5 A	0.5 A
Fastening Type	Latch Holder	Latch Lock/Eject Hooks, Latch Holder
Features	-	Closed End, Retention Clips
Insulation Color	Black	Black
Insulation Height	-	10.7 mm
Insulation Height [z]	7 mm	7 mm
Insulation Height [z]	0.276 in	0.276 - 0.421 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Free Hanging (In-Line), Through Hole, Right Angle, Through Hole
Number of Positions	68	20 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch	-	0.05 in
Pitch	-	1.27 mm
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Wire Gauge	-	28 AWG
Wire Type	-	Ribbon Cable

Part

Number of Rows

Contact Finish Thickness

Color

Contact Finish

Pitch [x]

Number of Positions

Fastening Type

Features

Cable Termination

Connector Type

Wire Gauge

Contact Type

Mounting Type

Wire Type

Contact Length - Post

Insulation Height [z]

Contact Finish Thickness - Mating

Termination

Operating Temperature [Max]

Operating Temperature [Min]

Current Rating (Amps)

Style

Shrouding

Insulation Material

Insulation Color

Pitch - Mating

Contact Finish - Mating

Contact Finish - Post

Material Flammability Rating

Contact Material

Number of Positions Loaded

Contact Finish Thickness - Post

Insulation Height

Contact Finish Thickness
