214-2"X60YD

Active

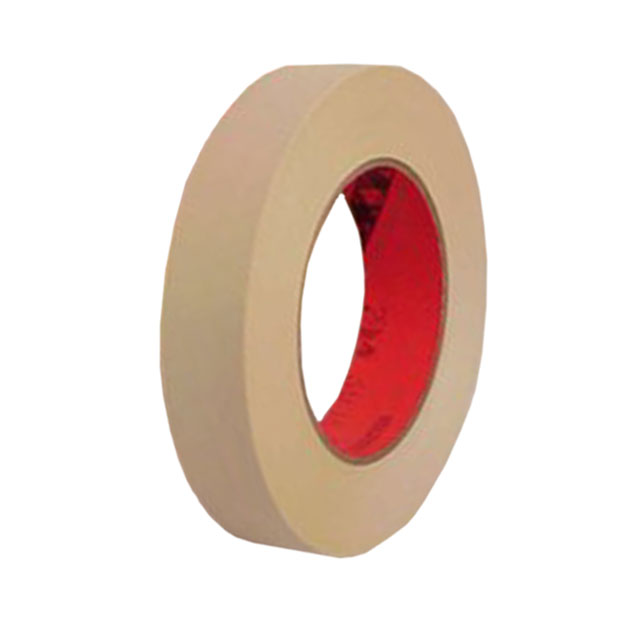

TAPE MASKING TAN 2"X60YDS

Search across all available documentation for this part.

Active

TAPE MASKING TAN 2"X60YDS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 154.70

General part information

Masking Tape Rubber Adhesive Tan 2.00" (50.80mm) X 180' (55.0m) 60 yds

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	214-2"X60YD	214 Series

Adhesive	Rubber	Rubber
Backing, Carrier	Crepe Paper	Crepe Paper
Color	Tan	Tan
Contact Finish - Mating	-	Gold
Contact Finish - Post	-	Gold
Contact Finish Thickness - Mating	-	30 Áin
Contact Finish Thickness - Mating	-	0.76 Ám
Contact Finish Thickness - Post	-	30 µin
Contact Finish Thickness - Post	-	0.76 µm
Contact Material - Mating	-	Beryllium Copper
Contact Material - Post	-	Beryllium Copper
Contact Resistance	-	25 mOhm
Current Rating (Amps)	-	1 A
Features	-	Closed Frame
Housing Material	-	Polysulfone (PSU), Glass Filled, Polyethersulfone (PES), Glass Filled
Length	60 yds	60 yds
Length	55 m	55 m
Length	180 ft	180 ft
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Connector, Through Hole
Number of Positions or Pins (Grid)	-	14
Operating Temperature	-	-55 °C
Operating Temperature	-	125 - 150 °C
Pitch - Mating	-	0.1 in
Pitch - Mating	-	2.54 mm
Pitch - Post	-	2.54 mm
Pitch - Post	-	0.1 in
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C	16 - 60 °F
Tape Type	Masking	Masking
Termination	-	Press-Fit, Solder
Termination Post Length	-	0.11 - 0.14 in
Termination Post Length	-	2.78 - 3.56 mm
Thickness	0.0067 "	0.0067 "
Thickness	0.17 mm	0.17 mm
Thickness	6.7 mils	6.7 mils
Type	-	7.62 mm
Type	-	0.3 in
Type	-	DIP, ZIF (ZIP), SOIC
Usage	High Temperature Adhesion	High Temperature Adhesion
Width [y]	2 "	2 "
Width [y]	50.8 mm	50.8 mm

CONN IC DIP SOCKET ZIF 14POS GLD

Part	Termination	Termination Post Length	Termination Post Length	Contact Resistance	Contact Finish - Mating	Contact Finish - Post	Current Rating (Amps)	Housing Material	Contact Material - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Type	Mounting Type	Pitch - Post	Pitch - Post	Contact Material - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions or Pins (Grid)	Usage	Shelf Life Start	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [y]	Width [y]	Thickness	Thickness	Thickness	Length	Length	Length	Backing, Carrier	Shelf Life	Color	Adhesive	Tape Type
3M 214-3339-00-0602J	Press-Fit	0.11 in	2.78 mm	25 mOhm	Gold	Gold	1 A	Polysulfone (PSU), Glass Filled	Beryllium Copper	30 µin	0.76 µm	7.62 mm	0.3 in	DIP, ZIF (ZIP)	Connector	2.54 mm	0.1 in	Beryllium Copper	UL94 V-0	30 Áin	0.76 Ám	0.1 in	2.54 mm	-55 °C	125 °C	Closed Frame	14
3M 214-7390-55-1902	Solder	0.14 in	3.56 mm		Gold	Gold	1 A	Polyethersulfone (PES), Glass Filled	Beryllium Copper	30 µin	0.76 µm			SOIC	Through Hole			Beryllium Copper	UL94 V-0					-55 °C	150 °C	Closed Frame	14
3M 214-2"X60YD																												High Temperature Adhesion	Date of Manufacture	16 °C, 60 °F	27 °C, 80 °F	2 "	50.8 mm	0.0067 "	0.17 mm	6.7 mils	60 yds	55 m	180 ft	Crepe Paper	12 Months	Tan	Rubber	Masking
